RH T-Bar Paddle Link w/ 3/8" Hole

RH T-Bar Paddle Link w/ 3/8" Hole

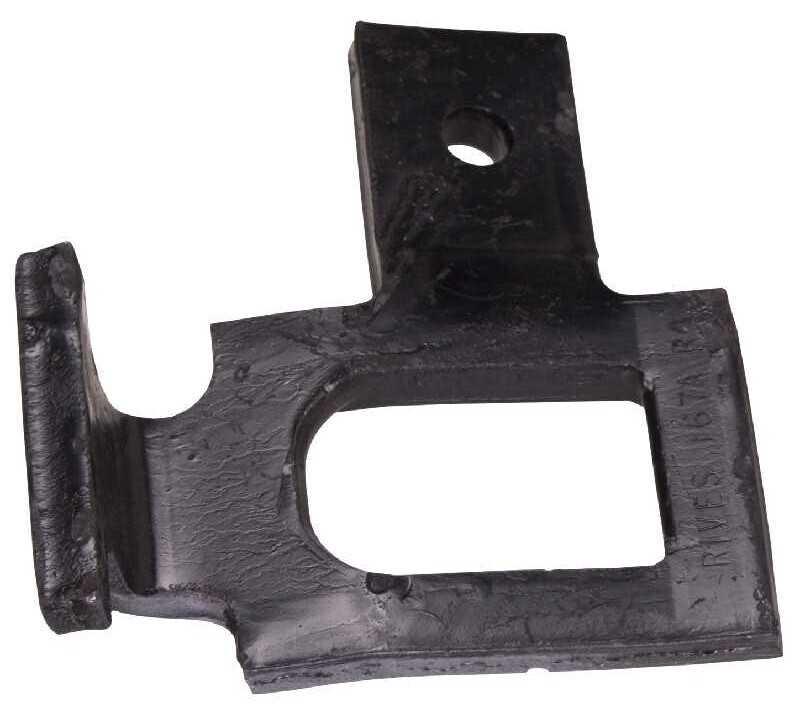

The SCT67ASR38 RH T-Bar Paddle Link is a right-hand attachment link designed for AL67 T-Bar chain systems, commonly used in agricultural conveyors and material handling equipment. Featuring a 3/8" mounting hole, this paddle link allows secure attachment of paddles or other conveying components to move grain, feed, or other materials efficiently. Built for durability and proper chain alignment, it integrates directly with AL67 T-Bar chain assemblies, helping keep conveyors running smoothly and consistently.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: SCT67ASR38
• Product Type: Right-hand T-Bar paddle attachment link
• Chain Compatibility: AL67 T-Bar chain
• Attachment Number: A1
• Hole Size: 3/8"
• Orientation: Right-hand (RH)
• Dimension J: 2.031"
• Dimension K: 3.75"
• Dimension M: 1.125"
• Dimension N: 0.391"
• Dimension T: 0.312"
• Function: Allows paddle or attachment mounting on T-Bar conveyor chain

Ideal For

• Agricultural conveyor and elevator systems
• Equipment using AL67 T-Bar chain
• Grain, feed, or material conveying applications
• Maintenance or replacement of worn conveyor chain attachments
• Installations where secure paddle mounting keeps material moving instead of piling up where it shouldn’t.
