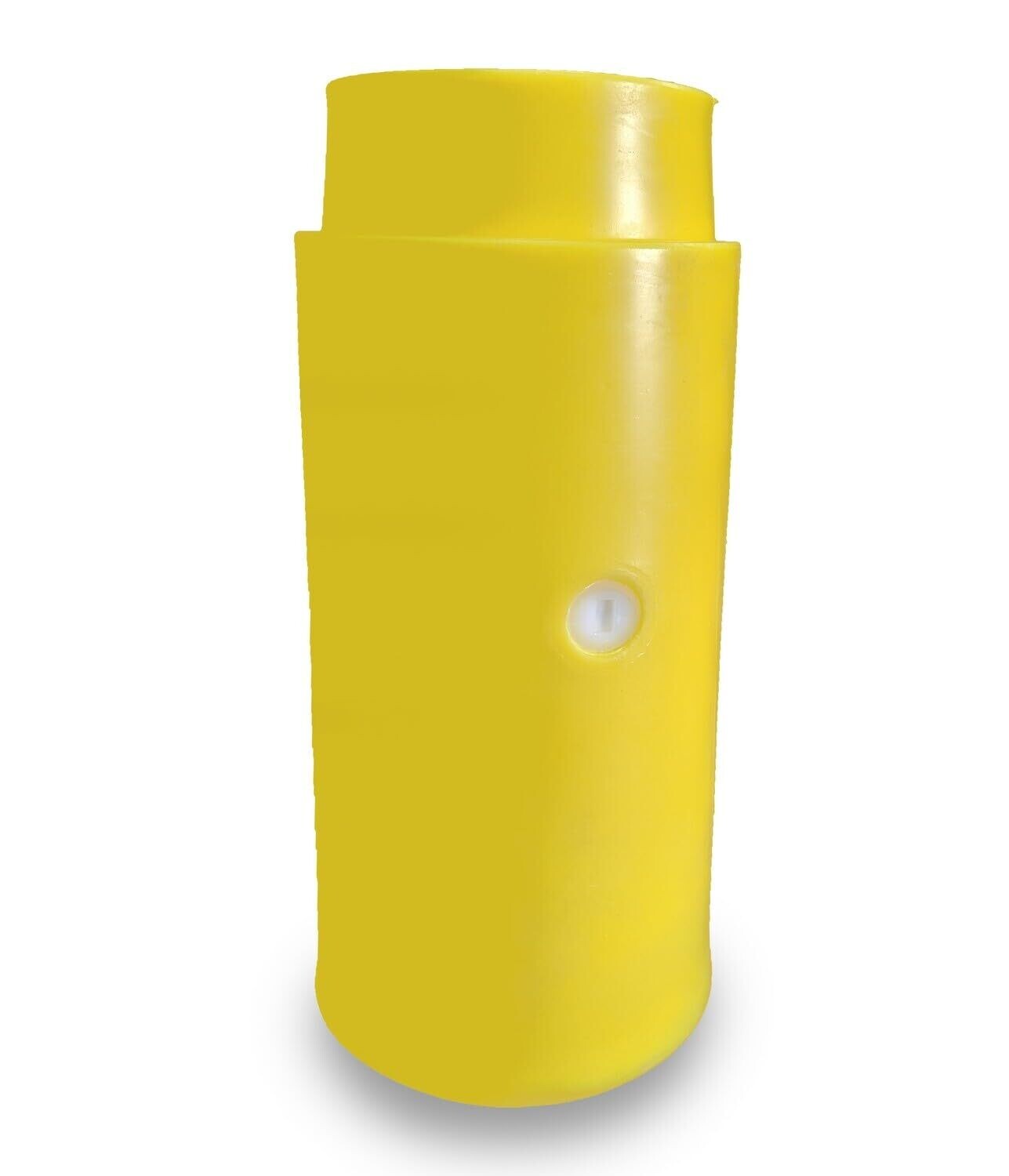

Ritchie Thermal Tube, 2Ft

Ritchie Thermal Tube, 2Ft

The Ritchie Thermal Tube, 2 Ft is designed to help protect vertical water supply lines from freezing by surrounding the line with 2" of insulation and a tested size profile intended to maximize cold-weather protection. With a 12" outside diameter and 8" inside diameter, this extension section lets you build the Thermal Tube system to the proper depth—reaching at least 1 foot below your local frost line when combined with additional extensions and a top.

Country of Origin: Varies by production batch

Key Features / Specifications

• Brand: Ritchie
• Part Number: 16416
• Product Type: Thermal tube extension
• Intended Use: Protect vertical water supply lines from freezing
• Insulation: 2" insulation all around
• R-Factor: R-7 per inch
• Outside Diameter: 12"
• Inside Diameter: 8"
• System Use: Extension sections combine with other extensions and tops to reach required depth below frost line
• Dimensions / Shipping (individual part):
  • Length: 12" (30.48 cm)
  • Width: 12" (30.48 cm)
  • Overall Height: 27" (68.58 cm)
  • Shipping Weight: 11 lb (4.99 kg)

Ideal For

• Livestock waterer installs needing extra protection for vertical supply lines
• Cold-climate setups where reaching 1 ft below the frost line improves freeze resistance
• New installs or retrofits where modular extensions help match site depth requirements
• Farms wanting a durable insulated sleeve to help reduce winter line freeze-ups
