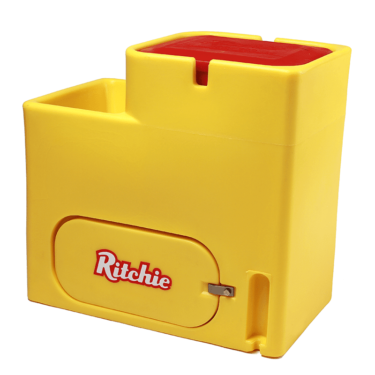

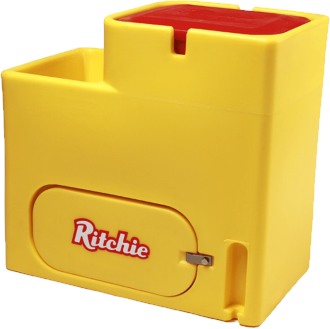

Ritchie WaterMatic 100 Single Waterer

Ritchie WaterMatic 100 Single Waterer

The 18165 WaterMatic 100 Ritchie Single Waterer is a compact, fully insulated livestock waterer designed for easy operation and simple maintenance while providing fresh water on demand with low waste. Its drop-in cover lifts easily for cleaning, and the sloped trough directs water and debris toward the drain for quick cleanup. Moveable drain plugs allow short-term shutoff during cleaning, when pens are empty, or during very cold nights. With a low-capacity, fast refill valve, it helps reduce water waste, and an optional heat package is recommended for freezing conditions.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: 18165
• Brand / Series: Ritchie WaterMatic 100
• Product Type: Single livestock waterer
• Capacity: 2.8 gal (10.6 L)
• Herd Capacity: 20 horses, 20 beef, 50 sheep
• Overall Dimensions: 24.5" L × 14" W × 23.5" H (62.23 cm × 35.56 cm × 59.69 cm)
• Drinking Height: 18" (45.72 cm)
• Shipping Weight: 38 lb (17.24 kg)
• Insulation: Fully insulated for summer cooling and added winter protection
• Maintenance Access: Drop-in cover for easy cleaning/service
• Cleaning Design: Sloped trough toward drain hole for debris removal
• Drain Plug Feature: Plugs can move to valve chamber opening for short-term trough shutoff
• Valve Performance: Low capacity with fast refill to reduce waste and provide fresh water
• Cold Weather Note: Optional heat package required in freezing conditions

Ideal For

• Pens and paddocks needing a compact, single-position waterer
• Beef and horse areas sized for up to 20 head
• Sheep setups needing water access for up to 50 head
• Operations prioritizing easy cleaning and low water waste
• Cold-climate installs using the optional heat package for freeze protection
