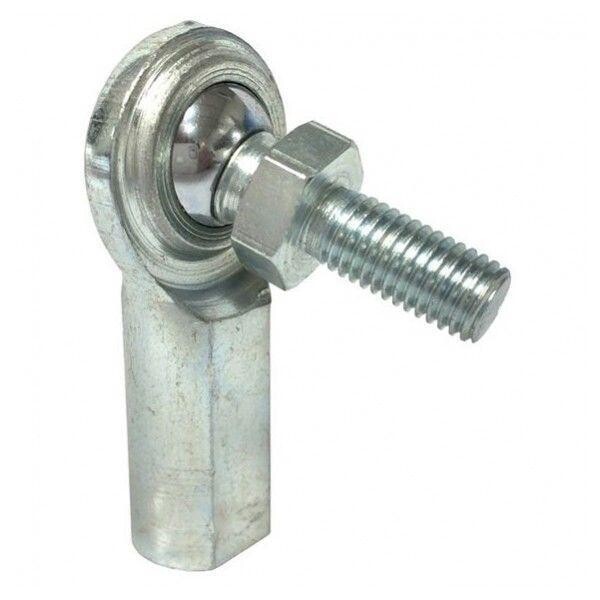

Rod End Bearing With Stud, 1/4"-28 RH

Rod End Bearing With Stud, 1/4"-28 RH

The CF4Y Rod End Bearing with Stud is a compact spherical rod end designed to provide smooth pivoting motion and reliable linkage alignment in mechanical assemblies. Built with a low-carbon steel body and zinc-plated finish, it offers dependable strength along with corrosion resistance for general-purpose use. The spherical bearing design allows for angular misalignment and rotational movement, helping reduce binding in linkage systems. Featuring a 1/4"-28 right-hand threaded stud and 1/4" bore, this rod end is well suited for light-duty control linkages, mechanical adjustments, and equipment connections where precise motion and durability are required.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: CF4Y
• Product Type: Rod End Bearing with Stud
• Thread Direction: Right-Hand (RH)
• Thread Size: 1/4 in.-28
• Bore Diameter: 1/4 in.
• Outside Diameter: 3/4 in.
• Bearing Width: 1/4 in.
• Bearing Style: Spherical
• Housing Material: Low Carbon Steel
• Finish: Zinc Plated for corrosion resistance
• Enclosure Type: Open
• Connection Type: Female rod end with threaded stud
• Function: Allows articulation and alignment compensation in linkage systems

Ideal For

• Mechanical linkages and control arms
• Agricultural and light industrial equipment
• Motion control systems requiring pivoting joints
• Repairs or builds needing a compact spherical rod end connection
• Applications where a little movement flexibility prevents a lot of mechanical frustration
