Run Capacitor, 5MFD 370V

Vanguard Run Capacitor, 5MFD 370V

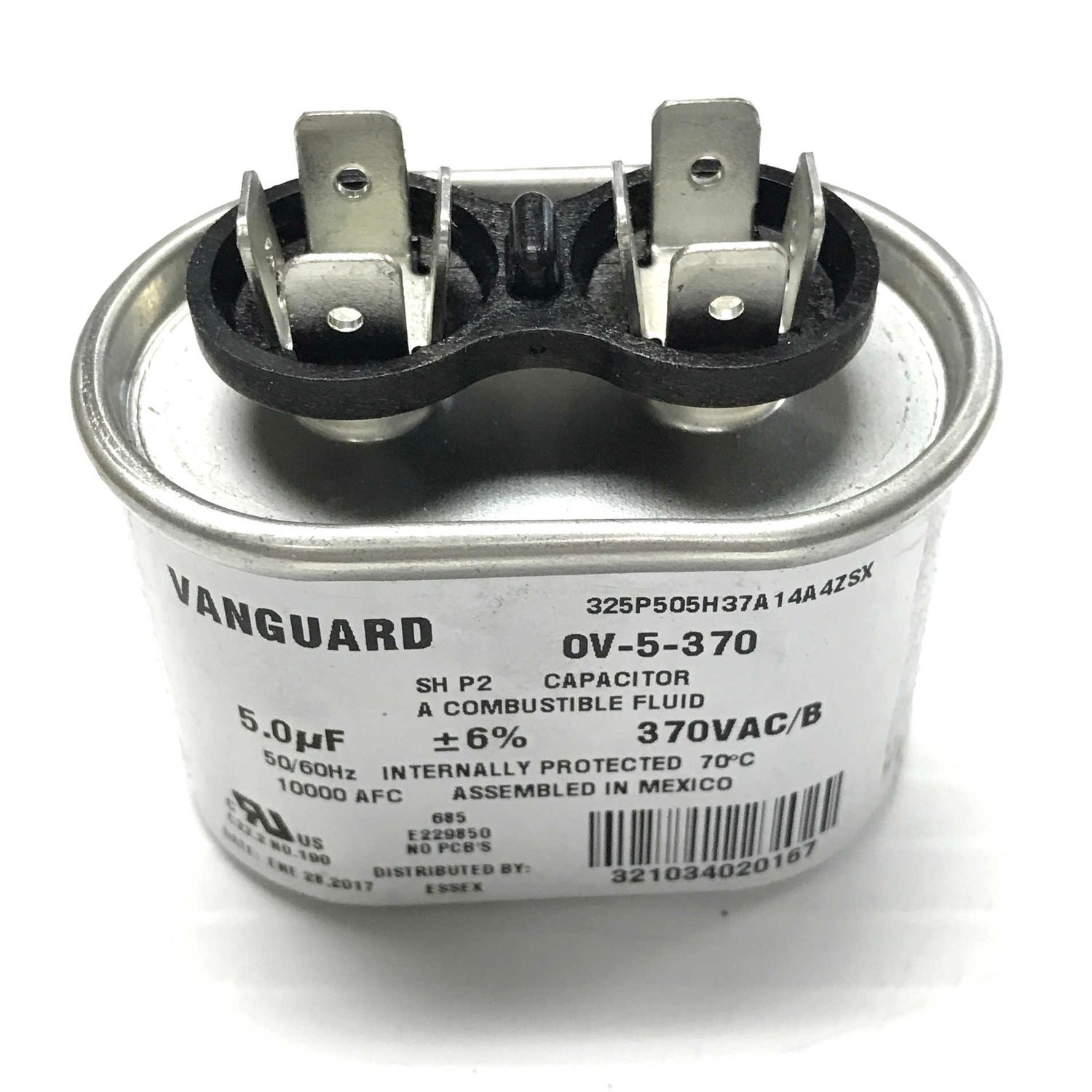

The OV-5-370 Vanguard Run Capacitor is a reliable motor run capacitor designed to support smooth, efficient operation in compatible HVAC and motor applications. Built with an oval metal case and 1/4" spade terminals for straightforward installation, it’s rated for 370 VAC service across 50/60 Hz systems—because sometimes the smallest part is the one that keeps everything from acting dramatic.

Country of Origin
Mexico

Key Features / Specifications

• Model / Part Number: OV-5-370
• Manufacturer: Vanguard Capacitors
• Product Type: Run capacitor
• Capacitance: 5 µF (MFD) ± 6%
• Voltage Rating: 370 VAC
• Frequency: 50/60 Hz
• Temperature Range: -40°C to +70°C
• Case Style / Material: Oval metal case
• Connection Type: 1/4" spade terminals
• Certifications: UL Recognized
• Dimensions: 2-5/32" diameter x 1-1/2" height x 1-5/16" depth
• Weight: 0.20 lbs
• UPC: Not provided

Ideal For

• Replacement in compatible HVAC condenser fan motors and other AC motor applications requiring a 5 µF, 370 VAC run capacitor
• Installations needing dependable performance across wide temperature ranges
• Quick swaps where 1/4" spade terminals and an oval metal case match existing fitments
• Keeping motors running smoothly instead of humming angrily and pretending they “always sounded like that”
