Run Capacitor, 7.5MFD 370V

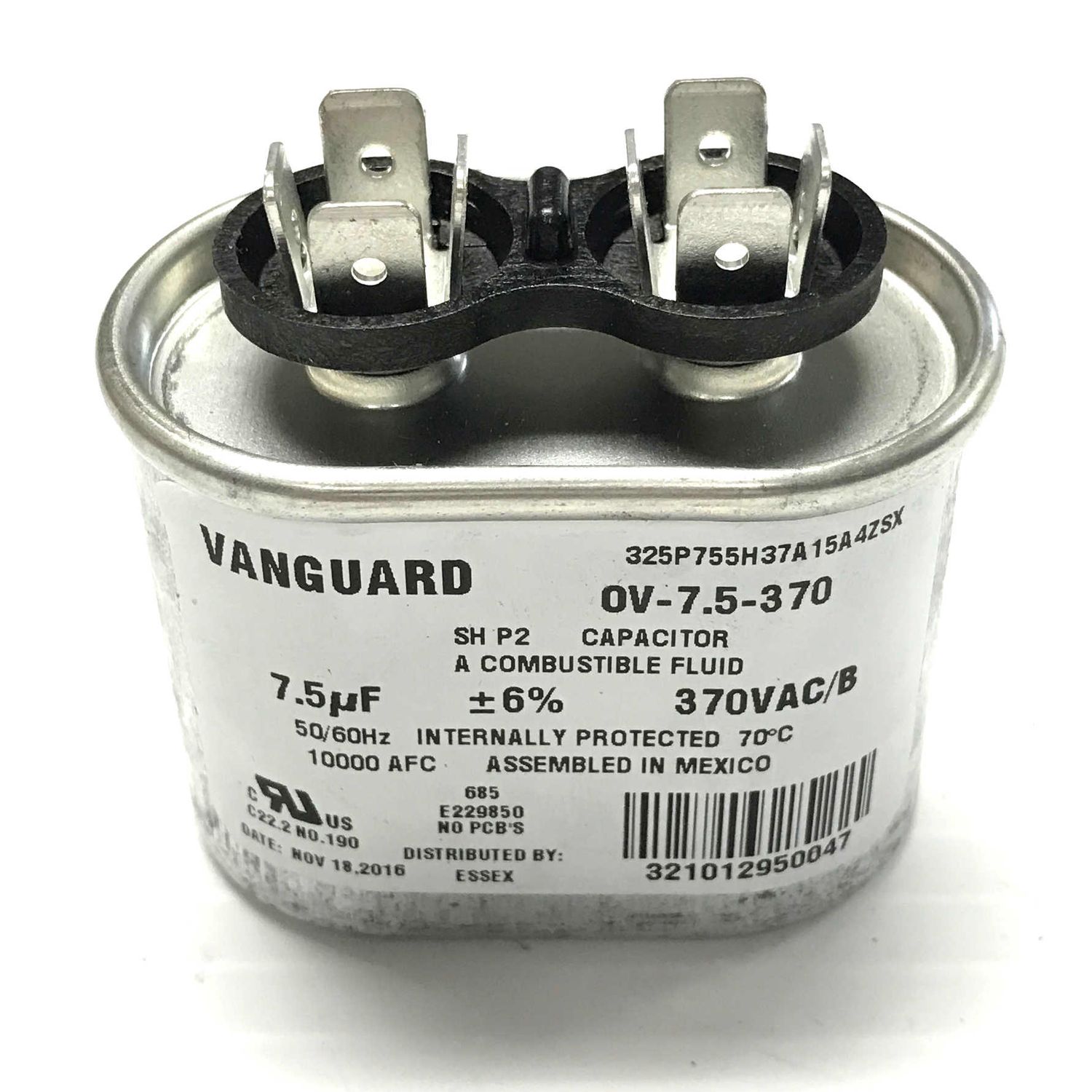

Vanguard Run Capacitor, 7.5MFD 370V

The OV-7.5-370 Vanguard Run Capacitor is a UL Recognized motor run capacitor designed for dependable performance in HVAC and motor applications that need steady operation without the “sometimes it starts” routine. Rated at 7.5 µF and 370 VAC, it supports 50/60 Hz service, is built in an oval metal case for tighter mounting spaces, and handles wide temperature swings up to 70°C.

Country of Origin
Made in Mexico

Key Features / Specifications

• Part Number: OV-7.5-370
• Manufacturer: Vanguard Capacitors
• Product Type: Motor run capacitor
• Capacitance: 7.5 µF ±6%
• Voltage Rating: 370 VAC
• Frequency: 50/60 Hz
• Temperature Range: -40°C to +70°C
• Certifications: UL Recognized
• Case Style: Oval metal
• Diameter: 2-5/32 in
• Height: 2-1/8 in
• Depth: 1-5/16 in
• Connection Type: 1/4 in spade terminals
• Weight: 0.20 lbs

Ideal For

• HVAC and motor applications requiring a 7.5 µF, 370 VAC run capacitor
• Replacements where UL recognition and wide temperature tolerance are important
• Installations needing an oval case for space-conscious mounting
• Techs who want the motor to start smoothly—without needing a “second try” warm-up ritual
