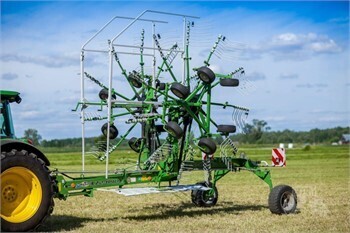

Samasz 2-Rotor Trailed Rake
SKU Z2-840
$25,800.00
Sold out
Sold out
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Samasz 2-Rotor Trailed Rake
Product Details
Brand: Samasz
Weight: 5 130.00 lbs
Samasz 2-Rotor Trailed Rake
Working width: 25-27'7", Transport width: 9'8"
Standard equipment
Oil operating gearbox with replaceable connecting rods (Z2-840) • Hydraulic folding • Tine loss protection • Hydraulic regulation of windrow width (Z2 - 840) • Swinging hitch • latch mechanism for transport • rake suspending mechanism on headlands • Working height adjustment • Dismountable arms for transport • Windrow curtain • Warning plates with rear road lights • Tandem wheels • PTO shaft • KENNFIX hydraulic connector
- tine-arm shape with its layout at the rotor has a great impact on windrow forming
- precise and clean material pick-up thanks to the shape and profile of the tines
- tandem chassis ensures ideal ground following
- anti-loss tine protection
- additional height adjustment for soft or firm fields
- thanks to applied working units support a turf is protected
- working width adjustment:
- from 7,20 to 7,60 m in Z2 780- hydraulic (option), mechanical (standard)
- from 7,60 to 8,40 m in Z2 840 H - hydraulic (standard)
- convenient transport thanks to foldaway guards
- great range of ground following
- mechanical transport and headlands latch
- KENNFIXX hydraulic connector
- automatic windrow curtain fold down to the working position
- forced steering system - the machine follows the tractor track
- wide, rear wheels ensure stability during transport
- over 10 years of experience in rotary rakes manufacturing
- 2 year warranty
- gearboxes of proven supplier
-
Z2-780 Z2-840 H Working width [m/ft] 7,20 - 7,60 / 23’7” - 24’11” 7,60 – 8,40 / 24’11’’-27’7’’ Windrow width [m/ft] 1,50 - 2,00 / 4’11” - 6’7” 1,20 - 2,00 / 3’11’’-6’7’’ Diameter of the rotor with arms [m/ft] 3,30 / 10’10’’ 3,65 / 11’12’’ Transport width [m/ft] 2,90 / 9’6’’ 3,00 / 9’8” Transport height with/without arms [m/ft] [m/ft] 3,40 / 4,10 // 11’2” / 13’5” 3,75 / 4,35 // 12’4” / 14’3” Necessary hydraulic couplers 1 x single acting 1 x single acting 1 x double acting Working capacity [ha/h/ac/h] ~ 8,00 / 20,00 ~ 9,00 / 22,00 Number of arms per rotor [pcs.] 11 11 The number of disassembled arms per transport carousel [pcs.] 4 4 Tines [pcs.] 4 4 RPM 540 540 3-point hitch cat. II II Power demand [HP] from 60 from 80 Tires (with inner tubes) [pcs.] 16 x 6,5 - 8 / 340/55-16 16 x 6,5 - 8 / 340/55-16 Weight [kg/lbs] 2040 / 4500 2330 / 5130 PTO shaft tractor - rake: wide-angle, built-in: 1. no clutch, 2. with overload clutch tractor - rake: wide-angle, built-in: 1. no clutch, 2. with overload clutch Depositing swaths central central
