Samasz Brass Bushing
SKU 0104.02.12.000
$27.99
In stock: 1 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Samasz Brass Bushing
Product Details
Weight: 0.20 lbs
Samasz Brass Bushing

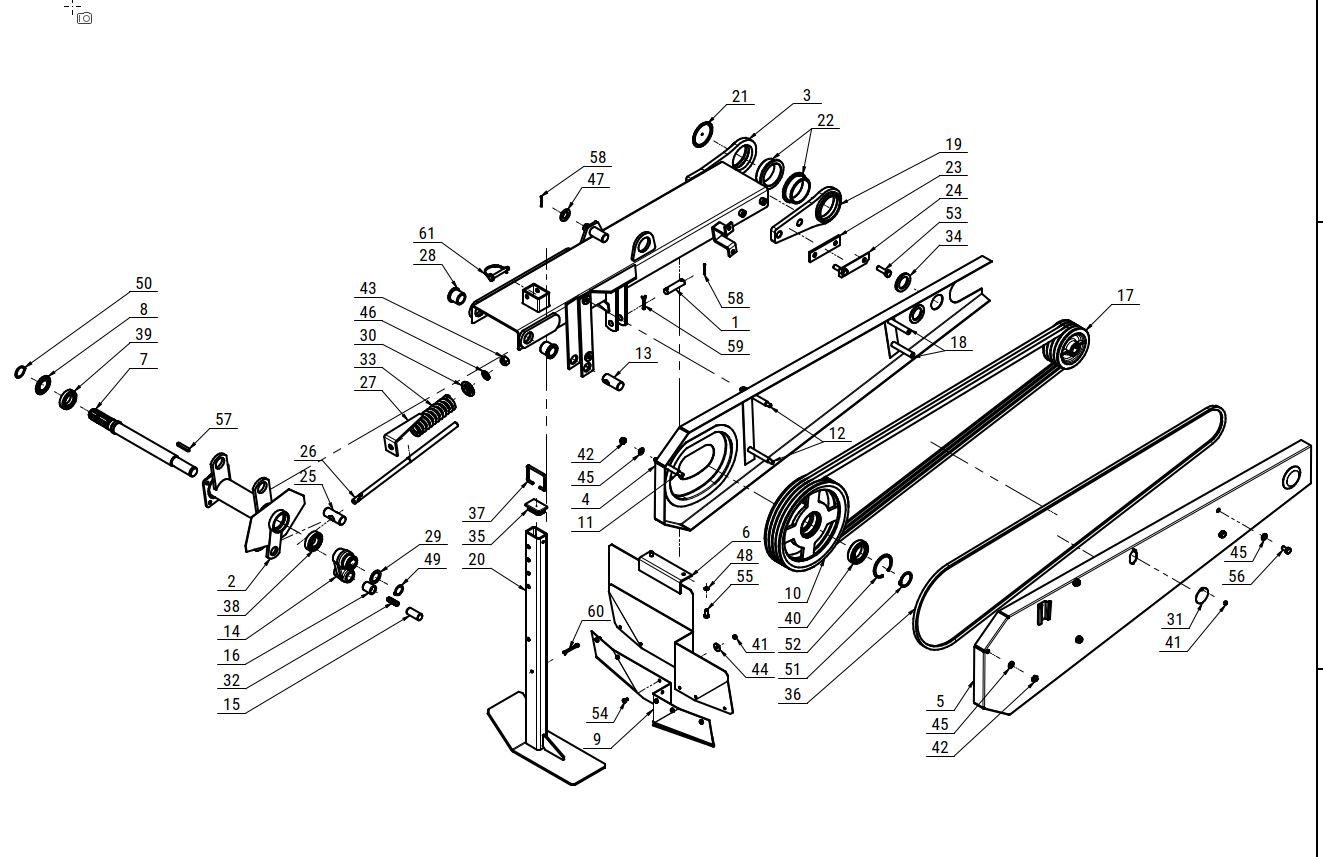

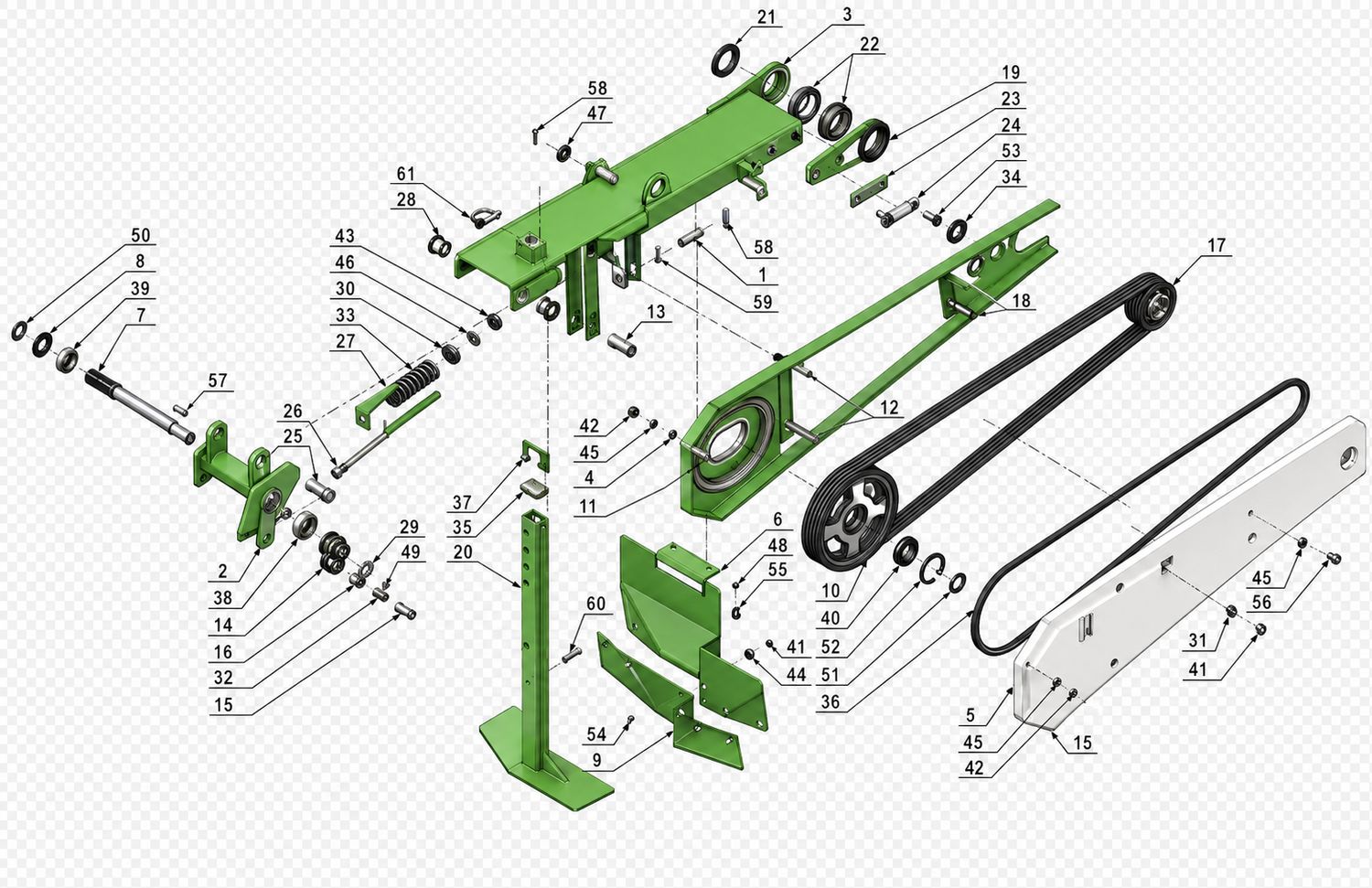

#16 in the diagram
| Item | Part No. | Quantity | Notes | ||||
| 1 | 00SO.18.00.075 | Pin Ø18 (SO.18.00.075) | 1 | ||||
| 2 | 0101.02.02.000 | Spline shaft housing | 1 | ||||
| 3 | 0103.02.01.000 | Bar welded | 1 | ||||
| 4 | 0103.02.03.000 | Rear safety guard | 1 | ||||
| 5 | 0103.02.04.000 | Front safety guard | 1 | ||||
| 6 | 0103.02.05.000 | Swath shield | 1 | ||||
| 7 | 0103.02.06.000 | Spline shaft | 1 | ||||
| 8 | 0103.02.07.000 | Washer | 1 | ||||
| 9 | 0103.02.08.000 | Safety curtain | 1 | ||||
| 10 | 0104.02.06.000 | Pulley large | 1 | MHOL-000-003 | |||
| 11 | 0104.02.07.000 | Bolt | 1 | ||||
| 12 | 0104.02.08.000 | Bolt | 2 | ||||
| 13 | 0104.02.09.000 | Pin | 1 | ||||
| 14 | 0104.02.10.000 | Cast clutch housing | 1 | ||||
| 15 | 0104.02.11.000 | Pin | 1 | ||||
| 16 | 0104.02.12.000 | Bush | 1 | ||||
| 17 | 0104.02.13.000 | Pulley small | 1 | MHOL- 000-004 | |||
| 18 | 0104.02.15.000 | Bolt | 2 | ||||
| 19 | 0105.02.02.000 | Bush holder | 1 | ||||
| 20 | 0105.02.07.000 | Support leg | 1 | ||||
| 21 | 0105.02.08.000 | Joint metal cap | 1 | ||||
| 22 | 0105.02.09.000 | Sliding bush | 2 | ||||
| 23 | 0105.02.10.000 | Spacer plate | 1 | ||||
| 24 | 0105.02.11.000 | Washer | 1 | ||||
| 25 | 0105.02.16.000 | Pin | 1 | ||||
| 26 | 0105.02.18.000 | Bolt | 1 | ||||
| 27 | 0105.02.21.000 | Checking plate | 1 | ||||
| 28 | 0105.02.22.000 | Bush PMB-B 30x38x30 | 2 | ||||
| 29 | 0105.04.11.000 | Adjusting washer Ø30 | 1 | ||||
| 30 | 0225.02.21.000 | Centering washer | 1 | ||||
| 31 | 0240.01.25.000 | Masking plate | 1 | ||||
| 32 | MISP-001-001 | Spring Ø1,6 (0104.02.14.000) | 1 | ||||
| 33 | MISP-009-002 | Tensioner spring Ø9 (0105.02.20.000) | 1 | ||||
| 34 | MITZ-050-003 | Plastic plug Ø50x3 - 12548 | 2 | ||||
| 35 | MITZ-060-003 | Plastic plug rec. 60x40x3-5 | 1 | ||||
| 36 | MZK-2932-001 | V-belt SPA - 2932 | 4 | ||||
| 37 | MZKR-000-002 | Wire handle | 1 | ||||
| 38 | MZLZ-006-022 | Bearing 6206 ZZ (ACR) | 1 | ||||
| 39 | MZLZ-007-012 | Bearing 6007 ZZ (ACR) | 1 | ||||
| 40 | MZLZ-009-022 | Bearing 6009 ZZ (ACR) | 1 | ||||
| 41 | MZNS-006-006 | Nut M 6 cl. 8 z. self-lock. | 8 | ||||
| 42 | MZNS-010-002 | Nut M10 cl. 8 z. self-lock. | 8 | ||||
| 43 | MZNZ-016-002 | Nut M16 cl. 8 z. | 1 | ||||
| 44 | MZPN-006-003 | Fender washer Ø6x25 z. | 7 | ||||
| 45 | MZPP-010-001 | Washer Ø10 z. | 12 | ||||
| 46 | MZPP-016-003 | Washer Ø16 | 1 | ||||
| 47 | MZPP-022-001 | Washer Ø22 z. | 1 | ||||
| 48 | MZPS-008-001 | Spring washer Ø8.2 z. | 2 | ||||
| 49 | MZSE-030-001 | Circlip Z 30 | 1 | ||||
| 50 | MZSE-035-001 | Circlip Z 35 | 1 | ||||
| 51 | MZSE-045-001 | Circlip Z 45 | 1 | ||||
| 52 | MZSE-075-001 | Snap ring W 75 | 1 | ||||
| 53 | MZSI-012-008 | Bolt M12x 40 cl. 10.9 z. (82105) | 2 | ||||
| 54 | MZSZ-006-001 | Bolt M 6x 12 cl. 8.8 z. (82105) | 7 | ||||
| 55 | MZSZ-008-001 | Bolt M 8x 20 cl. 8.8 z. (82105) | 2 | ||||
| 56 | MZSZ-010-010 | Bolt M10x 20 cl. 8.8 z. (82105) | 2 | ||||
| 57 | MZWP-018-013 | Key A | 8x 7x 50 | 1 | |||
| 58 | MZZK-005-006 | Spring pin Ø5x36 ss. | 2 | ||||
| 59 | MZZZ-005-002 | Cotter pin 5x36 z. | 1 | ||||
| 60 | MZZZ-006-001 | Cotter pin 6,3x70 z. | 1 | ||||
| 61 | MZZZ-010-000 | Lynch pin 10x70 z. - for tubes | 1 | ||||
