Samasz Rake Arm Mounting
SKU 0306.13.01.000
$114.49
In stock: 2 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Samasz Rake Arm Mounting
Product Details
Weight: 9.80 lbs
Samasz Rake Arm Mounting

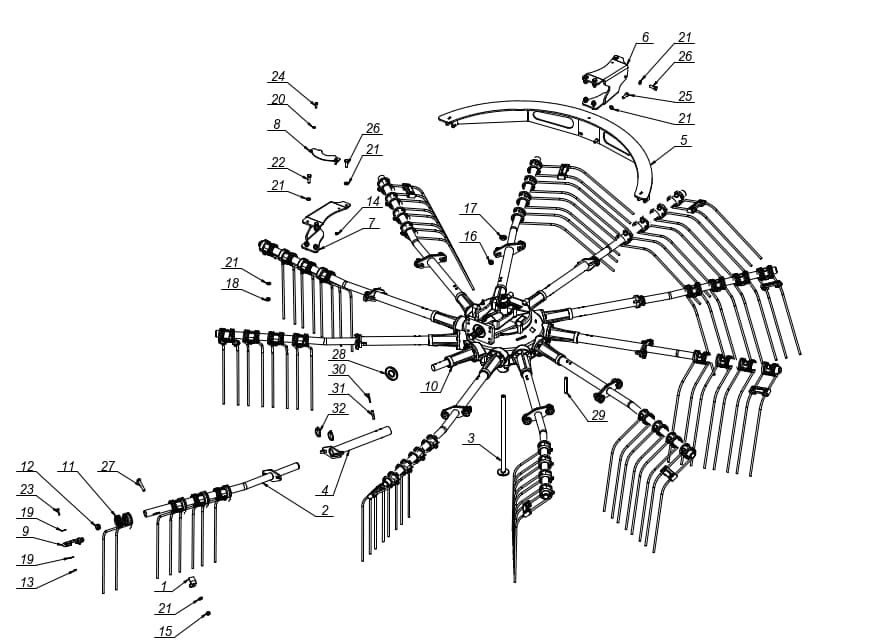

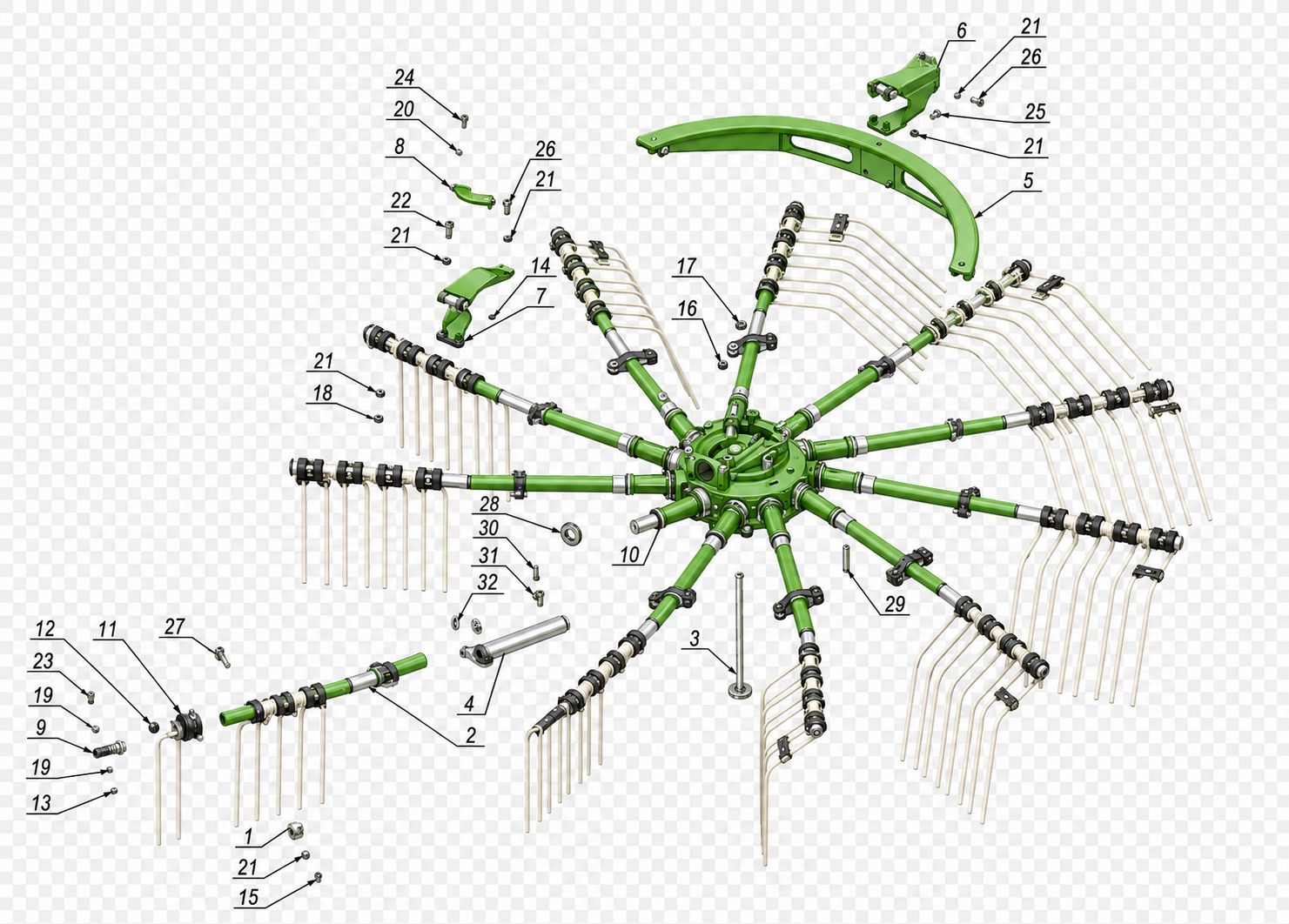

#4 in the diagram
| Item | Part No. | Part Name | Description | Quantity required |
| 1 | 0304.05.09.003 | Blokada palca | Tine's lock | 44 |
| 2 | 0305.04.11.001 | Ramię grabiące prawe | Arm right | 11 |
| 3 | 0306.03.02.000 | Zabezpieczenie wózka | Trolley's protection | 1 |
| 4 | 0306.13.01.000 | Mocowanie ramienia | Arm mounting | 11 |
| 5 | 0315.09.01.000 | Wzmocnienie przekładni tylnej | Strengthening rear gearbox | 1 |
| 6 | MIGZ-000-000 | Zabezpieczenie sprężyn zgrabiarki | Tine loss protection - rubber | 11 |
| 7 | MIHK-014-013 | Złączka M14x1,5 - M14x1,5 - korpus | Hydraulic connector M14x1,5 - M14x1,5 | 1 |
| 8 | MIPS-173-000 | Przekładnia karuzelowa 11-ramienna | Gearbox 11-arms (173-01.100.AC0) | 1 |
| 9 | MISP-009-010 | Palec fi9,5 (0302.05.03.001) | Tine fi9,5 (0302.05.03.001) | 44 |
| 10 | MITZ-030-003 | Zaślepka plastik Ø30x1-3 - 111063 | Plug plastic Ø30x1-3 - 111063 | 11 |
| 11 | MZNS-006-006 | Nakrętka M6 kl. 8 oc. samozab. (DIN 985) | Nut M6 cl. 8 z. self-lock. (DIN 985) | 22 |
| 12 | MZNS-012-010 | Nakrętka M12 kl. 10 oc. samozab. (DIN 985) | Nut M12 cl. 10 z. self-lock. (DIN 985) | 44 |
| 13 | MZNS-014-004 | Nakrętka M14 kl. 8 oc. samozab. (DIN 985) | Nut M14 cl. 8 z. self-lock. (DIN 985) | 8 |
| 14 | MZNS-022-005 | Nakrętka M22x1,5 kl. 8 oc. niska (DIN 439) | Nut M22x1,5 cl. 8 z. lowered (DIN 439) | 1 |
| 15 | MZPN-006-003 | Podkładka pow. Ø6x25 oc. (DIN 9021) | Fender washer Ø6x25 z. (DIN 9021) | 44 |
| 16 | MZPP-012-002 | Podkładka Ø12 oc. (DIN 125) | Washer Ø12 z. (DIN 125) | 48 |
| 17 | MZPP-014-001 | Podkładka Ø14 oc. (DIN 125) | Washer Ø14 z. (DIN 125) | 8 |
| 18 | MZSZ-006-006 | Śruba M6x30 kl. 8.8 oc. (DIN 933) | Bolt M6x30 cl. 8.8 z. (DIN 933) | 22 |
| 19 | MZSZ-012-046 | Śruba M12x35 kl. 10.9 oc. (DIN 933) | Bolt M12x35 cl. 10.9 z. (DIN 933) | 4 |
| 20 | MZSZ-012-171 | Śruba M12x70 kl. 10.9 oc. (DIN 931) | Bolt M12x70 cl. 10.9 z. (82101) | 44 |
| 21 | MZSZ-014-040 | Śruba M14x40 kl. 10.9 oc. (DIN 933) | Bolt M14x40 cl. 10.9 z. (DIN 933) | 4 |
| 22 | MZWP-014-0012 | Wpust A 14x9x110 | Key A 14x9x110 | 2 |
| 23 | MZZK-006-003 | Kołek spręż. Ø6x50 oc. (DIN 1481) | Spring pin Ø6x50 z. (DIN 1481) | 22 |
| 24 | MZZK-010-002 | Kołek spręż. Ø10x50 nierdz. (DIN 1481) | Spring pin Ø10x50 ss. (DIN 1481) | 22 |
| 25 | MZZP-000-001 | Zawleczka - Przetyczka A 11x45 | Lynch pin A 11x45 | 22 |
