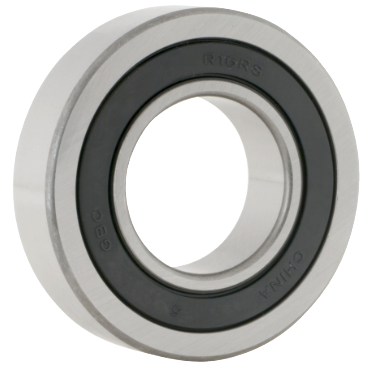

Sealed Ball Bearing, 1/4"X5/8"X.196"

Sealed Ball Bearing, 1/4"X5/8"X.196"

This R4 ball bearing is a high-precision premium quality deep groove 1/4"x5/8"x0.196" ball bearing made to ABEC 3 precision standards from AXIS. What sets this R4 bearing apart from others is the ABEC 3 precision standard that this bearing is made to, the grade 10-balls used, and the superb electric motor quality rating (EMQ). ABEC 3 means that the bearing itself has a micron deviation from a nominal of 20.000mm of -8 micrometers. The standard ABEC 1 precision standard that almost all ball bearings are made to today has a deviation of -10 micrometers. In simple terms, the more precision a bearing is, the better it will perform in any given application. The grade 10 balls within this bearing are typically only found within ABEC 5 or higher bearings because of their more true roundness and precision. The balls within a bearing share the load capacity, so this also increases the working life versus the standard grade 25 balls used in other brands. The electric motor quality rating means that the bearing must operate at an extremely low noise level with minimal to no vibration. To achieve this, the R4 bearing features raceways that are precision honed to a superb finish.

R4-2RS Ball Bearing Dimensions

• Dimension (d): 1/4"
• Dimension (D): 5/8"
• Dimension (B): 0.196"
• Dynamic Load Rating: 360 LBS
• Static Load Rating: 150 LBS
• Limiting Speed (Grease): 21600 RPM
• Limiting Speed (OIL): 36000 RPM
• Weight: 0.009 LBS
