Sealed Ball Bearing, 8X24X8

Sealed Ball Bearing, 8X24X8

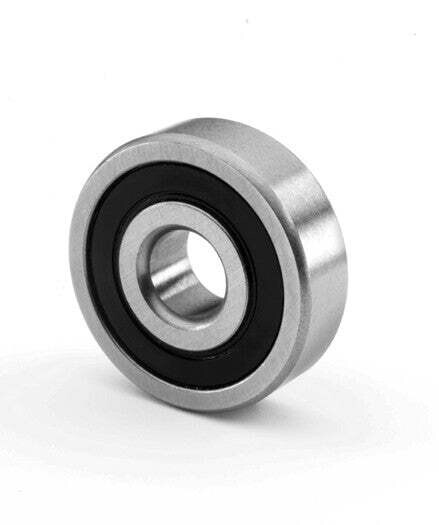

This 628-2RS Bearing is a high-precision premium sealed on both sides miniature ball bearing made to ABEC 3 precision standards from AXIS. What sets this 628-2RS bearing apart from others is the ABEC 3 precision standard that this bearing is made to, the grade 10-balls used, and the superb electric motor quality rating (EMQ). ABEC 3 means that the bearing has a micron deviation from a nominal of 20.000mm of -8 micrometers. The standard ABEC 1 precision standard that almost all ball bearings are made to today has a deviation of -10 micrometers. In simple terms, the more precision a bearing is, the better it will perform in any given application, especially when pertaining to a miniature bearing. The grade 10 balls within this bearing are typically only found within ABEC 5 or higher bearings because of their more true roundness and precision. The balls within a bearing share the load capacity, so this also increases the working life versus the standard grade 25 balls used in other brands. The electric motor quality rating means that the bearing must operate at an extremely low noise level with minimal to no vibration. To achieve this, the 628-2RS bearing features raceways that are precision honed to a superb finish.

628-2RS Miniature Bearing Dimensions

• Bearing Size: 628-2RS
• Dimension (d): 8mm
• Dimension (D): 24mm
• Dimension (B): 8mm
• Dynamic Load Rating: 690 LBS
• Static Load Rating: 350 LBS
• Grease Limiting Speed: 20000 RPM
• Oil Limiting Speed: 34000 RPM
• Weight: 0.038 LBS
