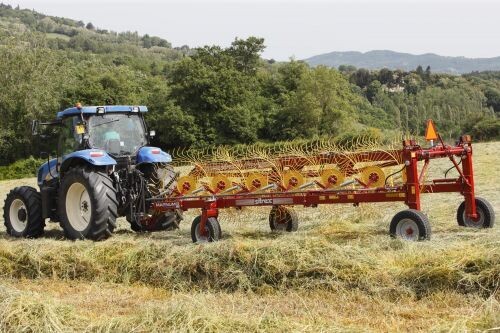

Sitrex Evolution 12-Wheel Bi-Fold Rake, 25' 3" Working Width, 55" Wheels
SKU MKE12
$19,500.00
In stock: 1 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Sitrex Evolution 12-Wheel Bi-Fold Rake, 25' 3" Working Width, 55" Wheels
Product Details
Brand: Sitrex
Weight: 3 700.00 lbs
Sitrex Evolution 12-Wheel Bi-Fold Rake, 25' 3" Working Width, 55" Wheels
Technical specifications
| Specifications | MKE 10 | MKE 12 | MKE 14 | MKE 16 | MKE 18 | MKE 20 |
|---|---|---|---|---|---|---|
| Number of Finger Wheels | 10 | 12 | 14 | 16 | 18 | 20 |
| Finger Wheel Diameter | 55” (1,4m) | 55” (1,4m) | 55” (1,4m) | 55” (1,4m) | 55” (1,4m) | 55” (1,4m) |
| Teeth per wheel | 40 | 40 | 40 | 40 | 40 | 40 |
| Finger Wheel Tine Diameter | 0,28” (7mm) | 0,28” (7mm) | 0,28” (7mm) | 0,28” (7mm) | 0,28” (7mm) | 0,28” (7mm) |
| Finger Wheel Diameter (Opt.) | 60” (1,52m) | 60” (1,52m) | 60” (1,52m) | 60” (1,52m) | 60” (1,52m) | 60” (1,52m) |
| Teeth per wheel | 40 | 40 | 40 | 40 | 40 | 40 |
| Finger Wheel Tine Diameter | 0,3” (7,5mm) | 0,3” (7,5mm) | 0,3” (7,5mm) | 0,3” (7,5mm) | 0,3” (7,5mm) | 0,3” (7,5mm) |
| Finger Wheel Hub Bearing Type | Tapered roller-greaseable | Tapered roller-greaseable | Tapered roller-greaseable | Tapered roller-greaseable | Tapered roller-greaseable | Tapered roller-greaseable |
| Finger Wheel Spacing (center to center) | 30,8” (780mm) | 30,8” (780mm) | 30,8” (780mm) | 30,8” (780mm) | 30,8” (780mm) | 30,8” (780mm) |
| Operating Weight lbs-Kg (with wheels 55") | 3520 lbs 1600 kg |
3700 lbs 1680 kg |
4955 lbs 2250 kg |
5290 lbs 2400 kg |
6610 lbs 3000 kg |
6760 lbs 3070 kg |
| Operating Weight lbs-Kg (with wheels 60") | 3625 lbs 1645 kg |
3820 lbs 1735 kg |
5090 lbs 2310 kg |
5400 lbs 2450 kg |
6760 lbs 3060 kg |
6960 lbs 3160 kg |
| Transport Wheel size | 205/75-15” | 205/75-15” | 205/75-15” | 205/75-15” | 205/75-15” | 205/75-15” |
| Min. Tractor Horsepower Required* | 30 HP - 22 kW | 30 HP - 22 kW | 30 HP - 22 kW | 30 HP - 22 kW | 55 HP - 40 kW | 55 HP - 40 kW |
| Safety Tow Chain | std | std | std | std | std | std |
| Overall Length-Transport | 24,8’ - 7,58 m | 24,8’ - 7,58 m | 32,8’ - 9,96 m | 32,8’ - 9,96 m | 38’ 3” - 11,65 m | 38’ 3” - 11,65 m |
| Transport Height (with wheels 60") | 6,39’ - 1,95 m | 6,39’ - 1,95 m | 6,39’ - 1,95 m | 6,39’ - 1,95 m | 6,39’ - 1,95 m | 6,39’ - 1,95 m |
| Overall Transport Width | 8’ 36’ - 2,55 m | 8’ 36’ - 2,55 m | 8’ 36’ - 2,55 m | 8’ 36’ - 2,55 m | 8’ 36’ - 2,55 m | 8’ 36’ - 2,55 m |
| Maximum Working Width | 21,3’ - 6,5 m | 25,3’ - 7,6 m | 28,5’ - 8,7 m | 31’ - 9,4 m | 34’ 5” - 10,5 m | 37’ 5” - 11,4 m |
| Minimum Windrow Width | 3’ - 0, 9m | 3’ - 0, 9m | 3’ - 0, 9m | 3’ - 0, 9m | 3’ - 0, 9m | 3’ - 0, 9m |
| Maximum Windrow Width | 6’ - 1,8m | 6’ - 1,8m | 6’ - 1,8m | 6’ - 1,8m | 6’ - 1,8m | 6’ - 1,8m |
