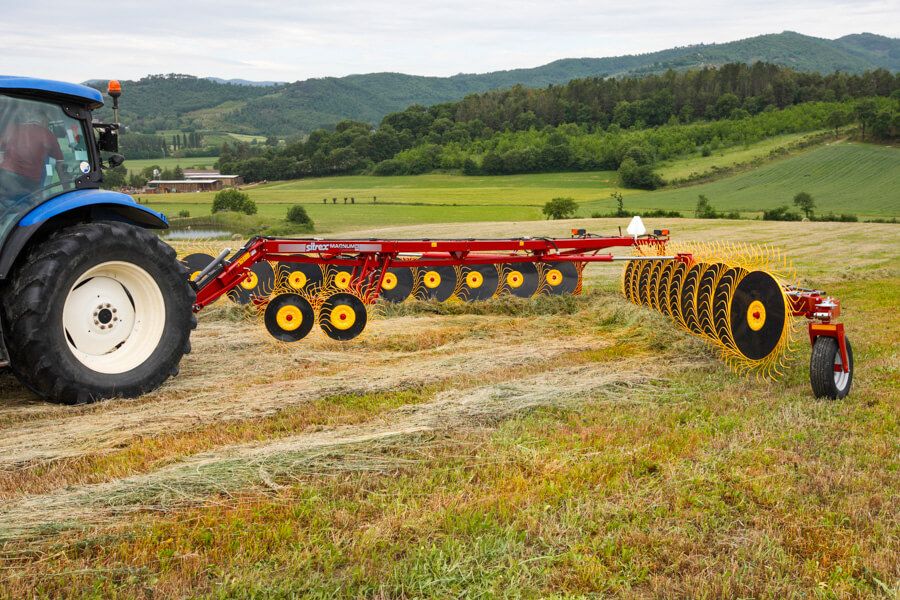

Name: Sitrex Evolution 14-Wheel Bi-Fold Rake, 28' 5" Working Width, 55" Wheels
SKU: MKE14
Price: 24900.0 USD
Availability: OutOfStock

Sitrex Evolution 14-Wheel Bi-Fold Rake, 28' 5" Working Width, 55" Wheels

The standard version has rake wheels with a diameter of 55” (1.4m) and tines with a diameter of 0.28” (7mm). As an alternative, and with no changes to the machine structure needed, it is possible to mount optional rake wheels with a diameter of 60’’ (1.52m) and tines with a diameter of 0.3” (7.5 mm). Each wheel, regardless of the diameter, is equipped with 40 tines made of top-quality spring steel.

A lever acting on a sprocket equipped with a locking mechanism enables the width of the swath to be adjusted easily and rapidly from about 3’ (0.91 m) to 6’ (1.8 m). Alternatively, this function can be performed by an optional hydraulic device enabling the adjustment of the swath directly from the tractor.

Technical specifications

Specifications	MKE 10	MKE 12	MKE 14	MKE 16	MKE 18	MKE 20
Number of Finger Wheels	10	12	14	16	18	20
Finger Wheel Diameter	55” (1,4m)	55” (1,4m)	55” (1,4m)	55” (1,4m)	55” (1,4m)	55” (1,4m)
Teeth per wheel	40	40	40	40	40	40
Finger Wheel Tine Diameter	0,28” (7mm)	0,28” (7mm)	0,28” (7mm)	0,28” (7mm)	0,28” (7mm)	0,28” (7mm)
Finger Wheel Diameter (Opt.)	60” (1,52m)	60” (1,52m)	60” (1,52m)	60” (1,52m)	60” (1,52m)	60” (1,52m)
Teeth per wheel	40	40	40	40	40	40
Finger Wheel Tine Diameter	0,3” (7,5mm)	0,3” (7,5mm)	0,3” (7,5mm)	0,3” (7,5mm)	0,3” (7,5mm)	0,3” (7,5mm)
Finger Wheel Hub Bearing Type	Tapered roller-greaseable	Tapered roller-greaseable	Tapered roller-greaseable	Tapered roller-greaseable	Tapered roller-greaseable	Tapered roller-greaseable
Finger Wheel Spacing (center to center)	30,8” (780mm)	30,8” (780mm)	30,8” (780mm)	30,8” (780mm)	30,8” (780mm)	30,8” (780mm)
Operating Weight lbs-Kg (with wheels 55")	3520 lbs 1600 kg	3700 lbs 1680 kg	4955 lbs 2250 kg	5290 lbs 2400 kg	6610 lbs 3000 kg	6760 lbs 3070 kg
Operating Weight lbs-Kg (with wheels 60")	3625 lbs 1645 kg	3820 lbs 1735 kg	5090 lbs 2310 kg	5400 lbs 2450 kg	6760 lbs 3060 kg	6960 lbs 3160 kg
Transport Wheel size	205/75-15”	205/75-15”	205/75-15”	205/75-15”	205/75-15”	205/75-15”
Min. Tractor Horsepower Required*	30 HP - 22 kW	30 HP - 22 kW	30 HP - 22 kW	30 HP - 22 kW	55 HP - 40 kW	55 HP - 40 kW
Safety Tow Chain	std	std	std	std	std	std
Overall Length-Transport	24,8’ - 7,58 m	24,8’ - 7,58 m	32,8’ - 9,96 m	32,8’ - 9,96 m	38’ 3” - 11,65 m	38’ 3” - 11,65 m
Transport Height (with wheels 60")	6,39’ - 1,95 m	6,39’ - 1,95 m	6,39’ - 1,95 m	6,39’ - 1,95 m	6,39’ - 1,95 m	6,39’ - 1,95 m
Overall Transport Width	8’ 36’ - 2,55 m	8’ 36’ - 2,55 m	8’ 36’ - 2,55 m	8’ 36’ - 2,55 m	8’ 36’ - 2,55 m	8’ 36’ - 2,55 m
Maximum Working Width	21,3’ - 6,5 m	25,3’ - 7,6 m	28,5’ - 8,7 m	31’ - 9,4 m	34’ 5” - 10,5 m	37’ 5” - 11,4 m
Minimum Windrow Width	3’ - 0, 9m	3’ - 0, 9m	3’ - 0, 9m	3’ - 0, 9m	3’ - 0, 9m	3’ - 0, 9m
Maximum Windrow Width	6’ - 1,8m	6’ - 1,8m	6’ - 1,8m	6’ - 1,8m	6’ - 1,8m	6’ - 1,8m
