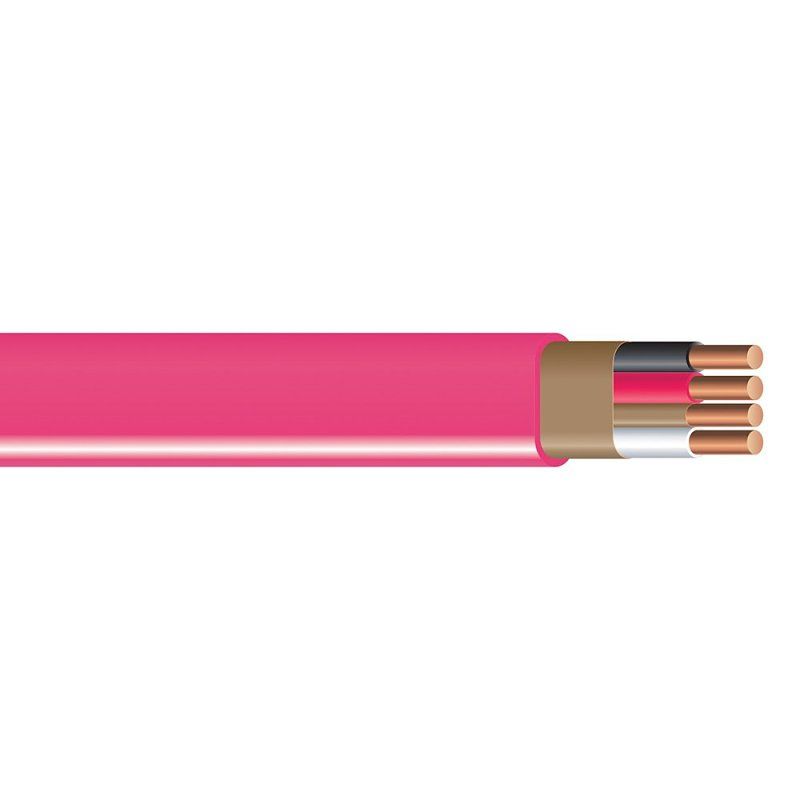

Southwire 10/3NM-WGX1000 Building Wire
SKU 482-6996
$2.09
Selling Unit
Please choose
In stock: 1596 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Southwire 10/3NM-WGX1000 Building Wire
Product Details
UPC: 032886046636
Brand: Southwire
Weight: 0.16 lbs
Southwire 10/3NM-WGX1000 Building Wire
Annealed (soft) copper conductor cable, with a ground wire, primarily used in residential wiring as branch circuits for outlets, switches and other loads. May be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90 deg C (with ampacity limited to that for 60 deg C conductors) as specified in the National Electrical Code 1. May be run in air voids of masonry block or tile walls where such walls are not subject to excessive moisture or dampness. Voltage rating for NM-B cable is 600 V. 3 conductors, 1000 ft spool. Meets or exceeds UL Standard 83, UL Standard 719, Federal Specification A-A-59544 and requirements of the National Electrical Code.
Annealed (soft) copper conductor cable, with a ground wire, primarily used in residential wiring as branch circuits for outlets, switches and other loads. May be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90 deg C (with ampacity limited to that for 60 deg C conductors) as specified in the National Electrical Code 1. May be run in air voids of masonry block or tile walls where such walls are not subject to excessive moisture or dampness. Voltage rating for NM-B cable is 600 V. 3 conductors, 1000 ft spool. Meets or exceeds UL Standard 83, UL Standard 719, Federal Specification A-A-59544 and requirements of the National Electrical Code.
Description du français:
10/3NM-WGX FIL DE CONSTRUCTION 1000PI
10/3NM-WGX FIL DE CONSTRUCTION 1000PI
Descripción español:
CABLE P/LA CONSTRUCC 10/3 NM DE 30 A X 304,80 M (WGX1000FT)
CABLE P/LA CONSTRUCC 10/3 NM DE 30 A X 304,80 M (WGX1000FT)
Product Details
Conductor Insulation:
PVC
Conductor Material:
Copper
Current Rating:
30 A
Length:
1000 in
Number of Conductors:
3
Operating Temperature:
90 deg C
Sheath Color:
Pink
Sheath Material:
Nylon
Strands per Conductor:
1
Type:
NM-B
Voltage Rating:
600 V
Wire Size:
10 AWG
Conductor Insulation:
PVC
Conductor Material:
Copper
Current Rating:
30 A
Length:
1000 in
Number of Conductors:
3
Operating Temperature:
90 deg C
Sheath Color:
Pink
Sheath Material:
Nylon
Strands per Conductor:
1
Type:
NM-B
Voltage Rating:
600 V
Wire Size:
10 AWG
Features
SIMpull jacket designed for easier pulling
Color-coded jacket
