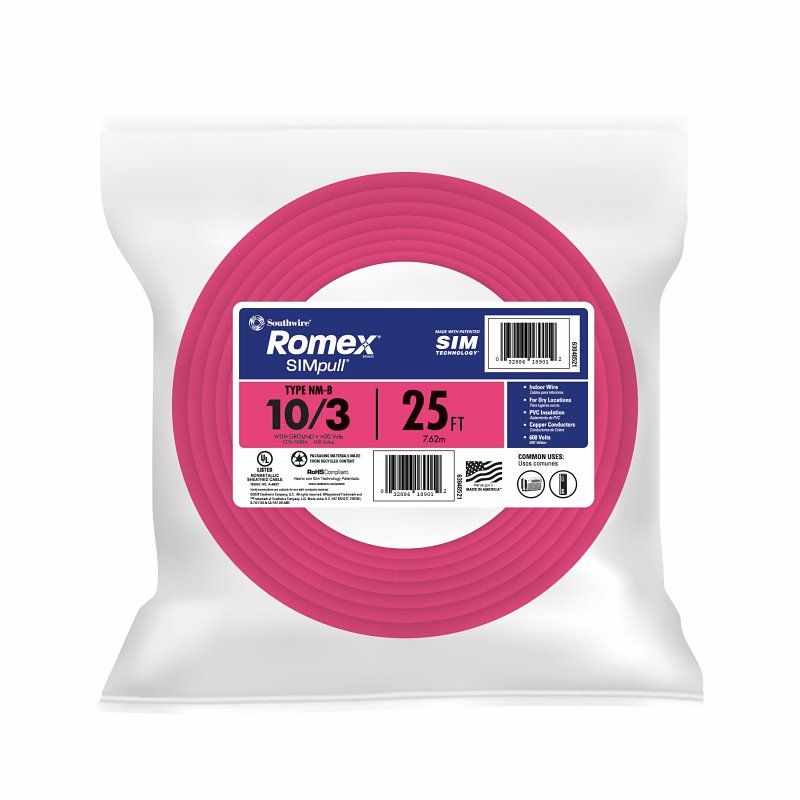

Southwire 10/3NM-WGX25 Building Wire

Southwire 10/3NM-WGX25 Building Wire

Romex Non-Metallic Cable, Wire Size: 10 AWG, 25 ft L, Number of Conductors: 3, Conductor Material: Copper, Conductor Insulation: PVC, Stranded/Solid: Solid, Sheath Material: Nylon, 600 V, 30 A, Resistance: 1.040 to 1.253 Ohm, Bend Radius: 1.3 in, Operating Temperature: 90 deg C

Descripción español:

CABLE P/CONST 10 CAE 3 COND NO MET A TIERRA X 7,62 M 30 A

Product Details

Bend Radius:

1.3 in

Conductor Insulation:

PVC

Conductor Material:

Copper

Current Rating:

30 A

Length:

25

Number of Conductors:

3

Operating Temperature:

90 deg C

Resistance:

1.040 to 1.253 Ohm

Sheath Material:

Nylon

Stranded/ Solid:

Solid

Voltage Rating:

600 V

Wire Size:

10 AWG

Features

Construction - bare copper per ASTM B3 sizes #14 AWG to #10 AWG are solid, sizes #8 AWG to #2 AWG are Class B compressed stranded per ASTM B8

All phases and neutral(s) are insulated with PVC with nylon sheath 2/C - black, white 3/C - black, red, white 4/C - black, red, blue, white insulated

Solid soft drawn bare copper with kraft paper wrap ground

Kraft paper binder

PVC jacket utilizing SIMpull technology jacket
