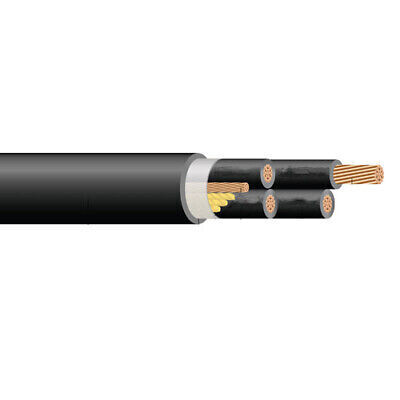

Southwire Tray Cable (TC-ER) 6/4-W/G THHN 600V

Southwire Tray Cable (TC-ER) 6/4-W/G THHN 600V

The Southwire 55343899 Tray Cable (TC-ER) 6/4 with Ground THHN 600V is a heavy-duty power and control cable built for demanding electrical installations in industrial, agricultural, and commercial environments. Designed for tray-rated exposed runs (TC-ER), this cable can be installed in cable trays, conduits, ducts, troughs, aerial messenger-supported runs, or direct burial applications. With four 6 AWG stranded copper conductors plus ground, THHN insulation, and a durable outer jacket, it provides dependable power delivery while handling harsh conditions. It’s rated for 75°C in wet locations and 90°C in dry locations, with emergency and short-circuit temperature tolerance built in—because good wiring should power the equipment, not cause the emergency.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 55343899
• Brand: Southwire
• Product Type: Tray cable (TC-ER) power cable
• Voltage Rating: 600V
• Conductor Size: 6 AWG
• Number of Conductors: 4 conductors with ground (6/4 W/G)
• Conductor Construction: 7-strand copper
• Insulation Type: THHN
• Diameter Over Conductor: 0.177"
• Insulation Thickness: 30 mils
• Jacket Thickness: 60 mils
• Approx. Overall Diameter: 0.789"
• Copper Weight: 378 lbs per 1000 ft
• Approx. Cable Weight: 559 lbs per 1000 ft
• Temperature Rating: 75°C wet / 90°C dry
• Emergency Overload Rating: 130°C
• Short Circuit Rating: 250°C

Application & Installation

• Approved for wet or dry locations
• Suitable for conduit, cable trays, ducts, troughs, and raceways
• Rated for direct burial
• Can be used in aerial runs supported by messenger wire
• Approved for TC-ER exposed runs per NEC 336.10
• Suitable for Class I, II, and III Division 2 hazardous locations per NEC Articles 501 & 502

Ideal For

• Industrial power distribution and control wiring
• Agricultural facilities, grain systems, and equipment buildings
• Cable tray installations requiring TC-ER rated cable
• Outdoor electrical runs including direct burial
• Electricians and installers who want cable that handles tough environments without acting like it’s afraid of a little dirt, moisture, or hard work
