Splined Wheel Stud, 5/8"X2-1/2"-.682

Splined Wheel Stud, 5/8"X2-1/2"-.682

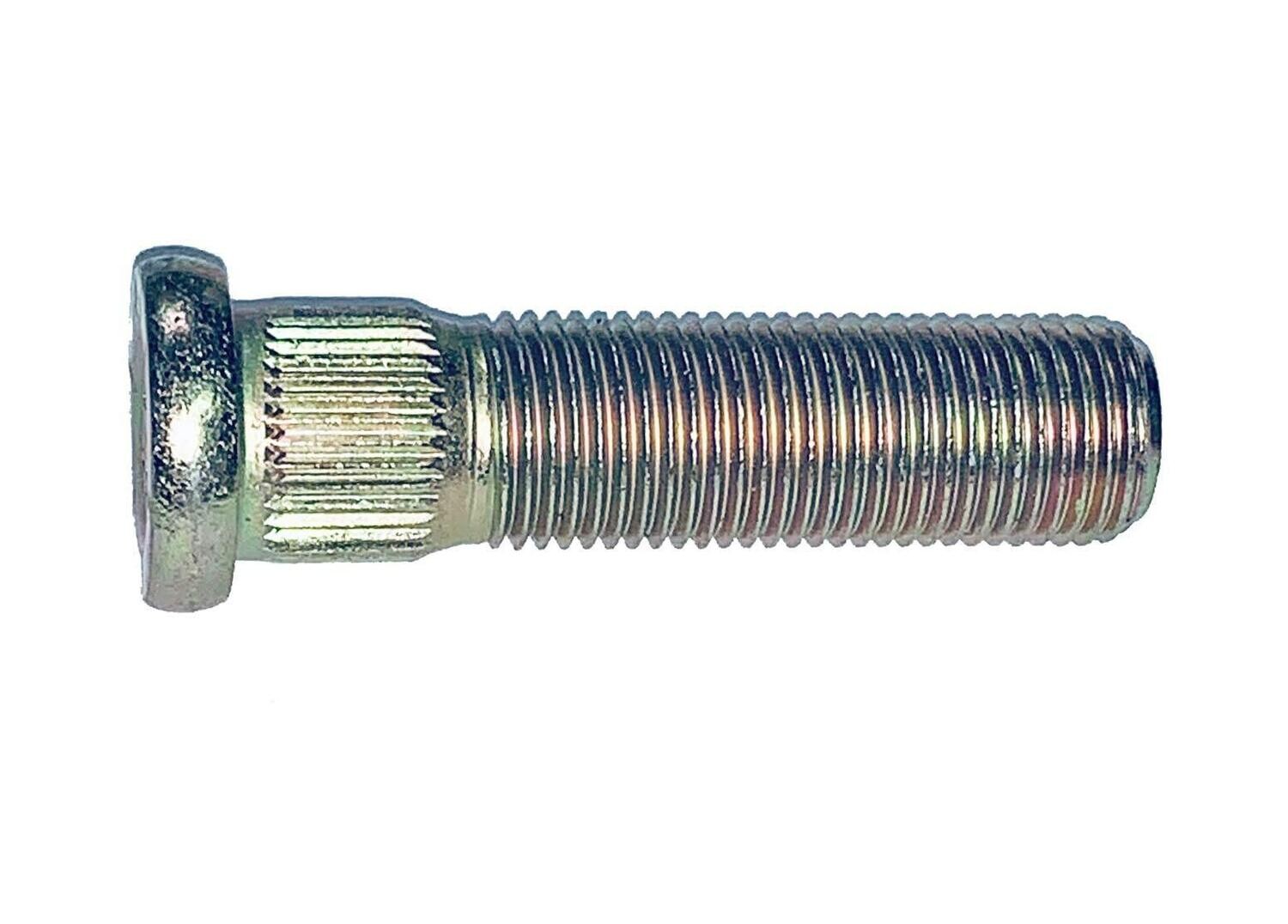

The SWS58*212-.682 Splined Wheel Stud is a heavy-duty press-in wheel stud designed to securely mount wheels to hubs in demanding vehicle and equipment applications. Featuring a 5/8" diameter with a 2-1/2" overall length and a .682" spline diameter, the splined shank presses into the hub to prevent rotation during installation and removal of lug nuts. Built for durability and reliable clamping strength, this stud provides the secure wheel retention required for trailers, agricultural equipment, and heavy-duty vehicles—because wheel hardware is one place where “almost tight” is not good enough.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: SWS58*212-.682
• Product Type: Splined wheel stud
• Stud Diameter / Thread Size: 5/8"
• Overall Length: 2-1/2"
• Spline Diameter: .682"
• Mounting Style: Press-in splined shank
• Material: Hardened steel
• Function: Secures wheels to hubs while preventing stud rotation
• Installation: Press-fit installation into wheel hub

Ideal For

• Trailer hubs and heavy-duty wheel assemblies
• Agricultural and industrial equipment
• Wheel hub repairs and stud replacement
• Applications requiring strong, secure wheel mounting
• Situations where a properly installed stud keeps the wheel attached to the hub instead of trying to pass you on the highway
