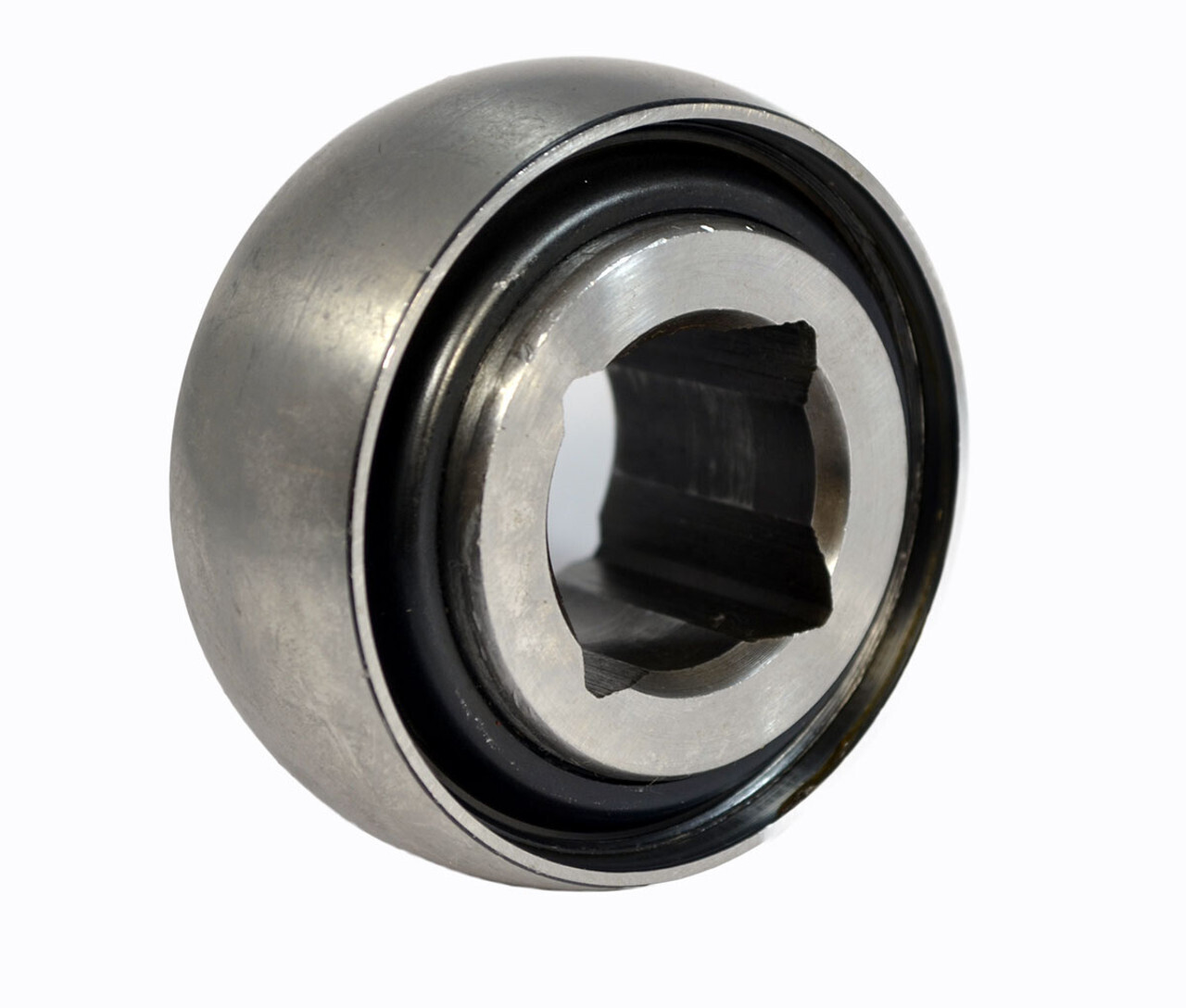

Square Bore Ag Bearing, 1-1/2X3.937X1.312X1.312

Square Bore Ag Bearing, 1-1/2X3.937X1.312X1.312

• Tri-Ply Seal ball bearings are designed for environments where severe contamination is present such as agricultural tillage equipment.The one-piece Tri-Ply Seals incorporate a highly effective seal design moded to an exterior shroud cap to provide exceptionally effective protection against the loss of lubricant and the entrance of wet or abrasive contaminants.A seven piece Tri-Ply construction is standard on certain sizes.The shroud cap nests closely with the outside seal and helps protect the rubber seal members from wrappage and abrasion. A feature of these bearings is their balanced design identified by deep races, large balls and extra wide or heavy, shock-resitant inner and outer rings.The use of Tri-Ply Seal bearings simplifies housing designs,and their extra inner ring width provides greater support on the shaft.For speeds in excess of 500 rpm, consult the Engineering Department.

• Ball Dia.	9/16 in
  No. in Set	Single Bearing
  Temperature Range [Max]	275 °F
  No. of Balls	10
  Static Load Rating [Max]	6550 lbf
  Seal Material	Buna-N
  I.D.	1 1/2 in
  Stamping	100MS
  Inner Ring Width	1 5/16 in
  Temperature Range [Min]	-30 °F
  Snap Ring	No Snap Ring
  Rows of Balls	Single
  Material	Steel
  Dynamic Load Rating	11000 lbf
  Precision Level	Standard (ABEC 1)
  Lubricant	Polyurea Base
  Bore Type	Square Bore
  Origin	Wide Inner Ring
  Precision	Standard
  Locking Device	No Locking Device
  Bearing Type	Radial
  Outer Ring Width	1 5/16 in
  Capacity	Standard Capacity
  O.D.	3.93701 in
  Cage Material	Steel
  Radial Internal Clearance Specification	Greater Than Normal Clearance
  Contact Angle	0°
  Inch/Metric	Inch Bore
  Ball Material	Steel
  Radial Internal Clearance	C3
  O.D. Type	Spherical
  Enclosure	Double Sealed
  Preload Level	None
  Seal Type	Tri-Ply Seals
  Cage Type	Metal
  Weight	2.43 LB
  EAN or UPC	87796042018
