Square D Ground Bar Insulators

Square D Ground Bar Insulators

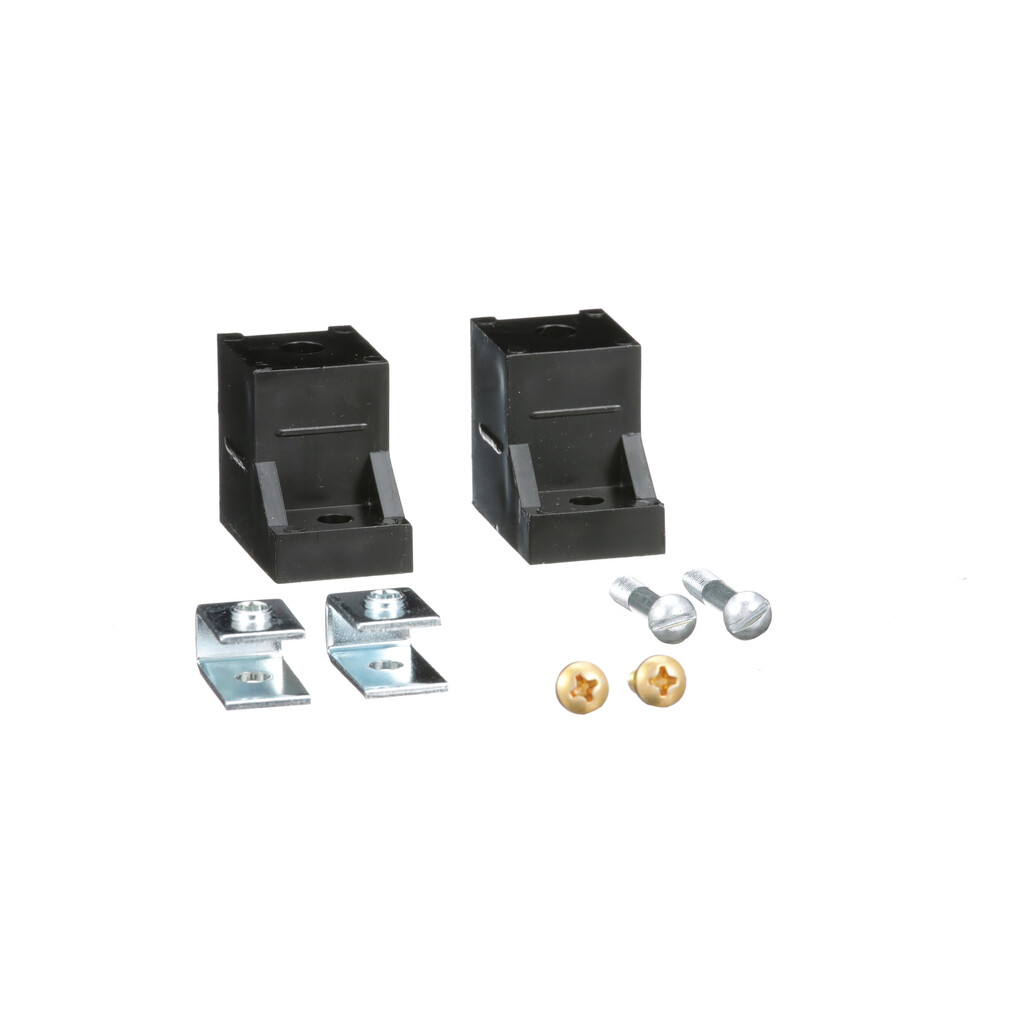

The Square D PKGTab ground bar insulators are heavy-duty insulating supports designed to safely mount ground bars inside electrical enclosures while maintaining required electrical isolation. Built for dependable performance in panelboards and enclosures, these insulators help keep grounding systems properly separated—so electricity goes where it’s supposed to, and not on an unscheduled adventure.

Country of Origin
Made in the U.S.A.

Key Features / Specifications

• Brand: Square D (Schneider Electric)
• Product Type: Ground bar insulators
• Mounting Style: Designed for mounting ground bars to enclosure surfaces
• Insulation Function: Maintains required electrical clearance between ground bar and enclosure

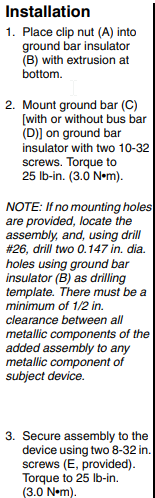

• Installation: Mounts using standard hardware (instructions specify 10-32 and 8-32 screws)
• Clearance Requirement: Minimum 1/2 in air clearance between metallic components, per installation instructions
• Application Location: Electrical enclosures, panelboards, and distribution equipment
• Construction: Rigid insulating material for long-term durability

Ideal For

• Installing or replacing ground bar insulators in Square D electrical enclosures
• Electrical panels requiring proper grounding isolation
• Service and retrofit work where code-compliant spacing matters
• Keeping ground bars supported, aligned, and electrically well-behaved (because grounding should be boring—in a good way)
