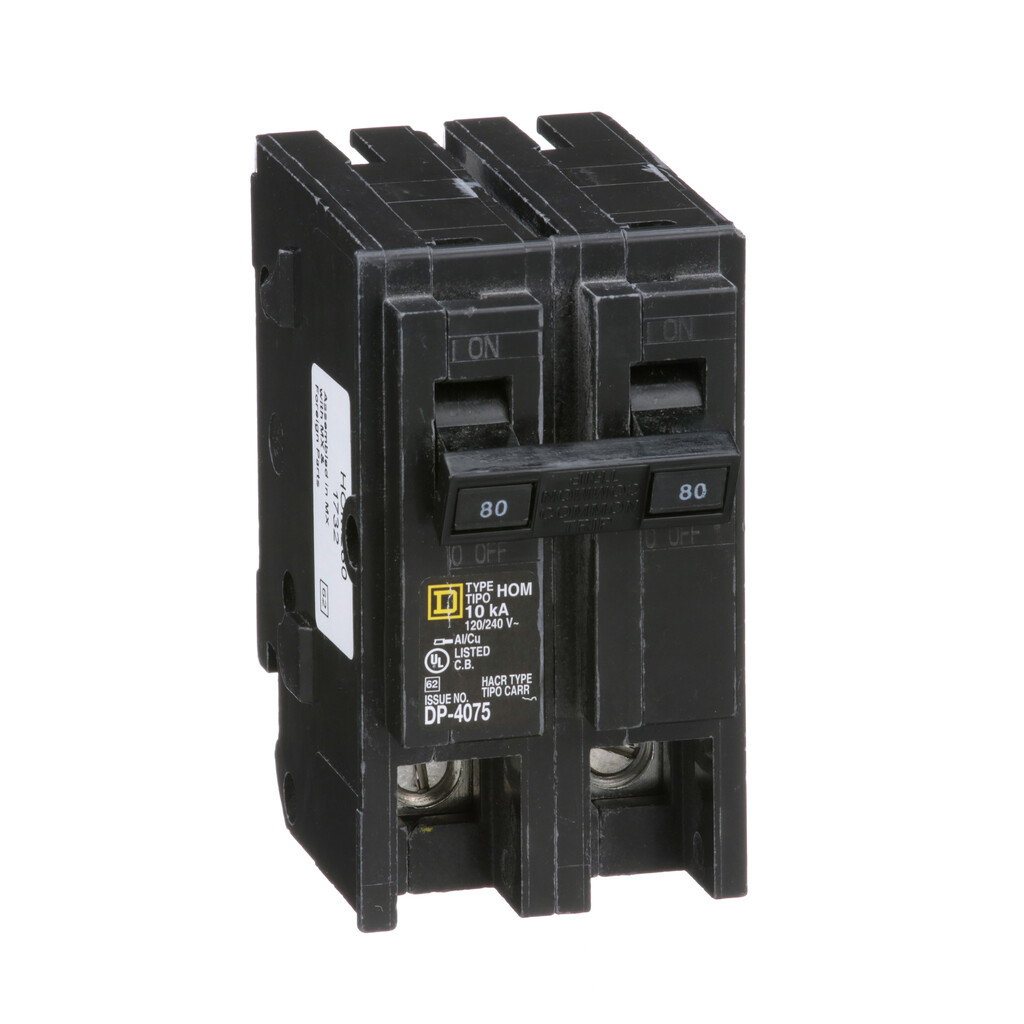

Square D HOM280 Homeline Mini Circuit Breaker, 80A, 120/240VAC, 2-Pole

Square D HOM280 Homeline Mini Circuit Breaker, 80A, 120/240VAC, 2-Pole

The Square D Homeline Mini Circuit Breaker (HOM280 / 0221-1750), 80A, 120/240VAC, 2-Pole is engineered for fast plug-in installation and dependable circuit protection in Homeline load centers. This standard 2-pole breaker is HACR rated, UL Listed, and provides 10 kA short-circuit breaking capacity, with box lugs that accept 4 AWG to 2/0 AWG copper or aluminum conductors for solid, secure connections.

Country of Origin: Varies by production batch

Key Features / Specifications

• Brand: Square D
• Series / Range: Homeline
• Model / SKU: HOM280 (0221-1750)
• Product Type: Miniature circuit breaker
• Current Rating: 80A
• Voltage Rating: 120/240 VAC
• Poles: 2-Pole (2P)
• Mounting Type: Plug-in
• Circuit Breaker Type: Standard
• Ratings: HACR rated
• Short Circuit Current Rating: 10 kA breaking capacity
• Number of Spaces: 2
• Electrical Connection: Box lugs (clamp terminal)
• Wire Size / Lug Range: 1 × AWG 4 to AWG 2/0 (copper or aluminum)
• Dimensions: 3.13" H × 2.0" W × 2.98" D
• Certification: UL Listed
• Compatibility: Designed to plug into Homeline load centers

Ideal For

• Adding or replacing an 80A, 2-pole breaker in Square D Homeline load centers
• 120/240V circuits requiring standard protection with HACR rating
• Installations needing a plug-in breaker for faster panel fit-up
• Applications requiring 10 kA interrupting capacity
• Feeds using larger conductors within the 4 AWG to 2/0 AWG copper/aluminum range
