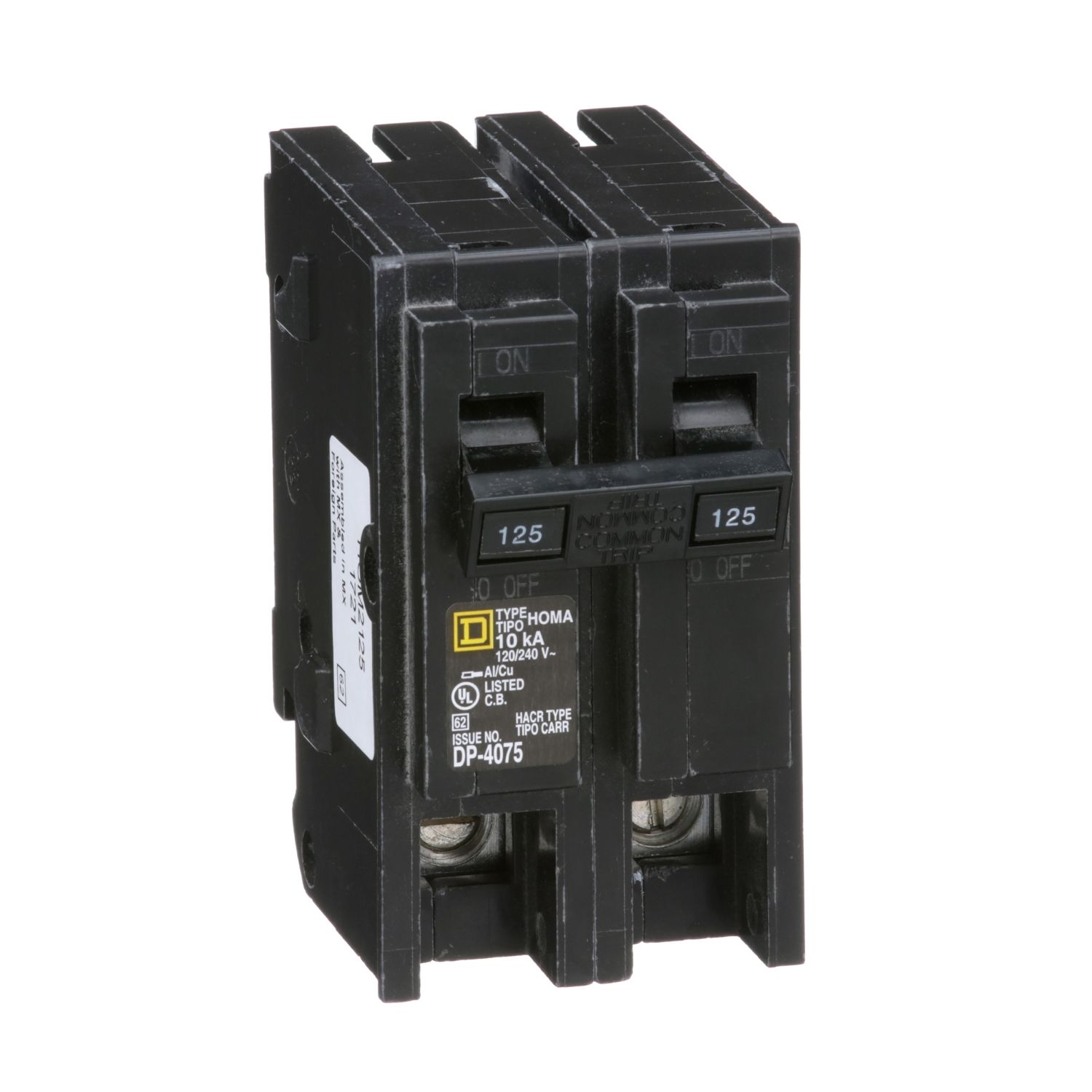

Square D Homeline Circuit Breaker, 125A 2-Pole

Square D Homeline Circuit Breaker, 125A 2-Pole

The Square D Homeline HOM2125 Circuit Breaker, 125A 2-Pole is a plug-in Homeline breaker engineered for quick installation and dependable overcurrent protection in 120/240V residential and light commercial panels. With standard thermal-magnetic protection, HACR rating, and a 10 kA interrupt capacity, it’s built to protect feeder and large branch circuits while accepting heavy-gauge copper or aluminum conductors via box lugs.

Country of Origin: Varies by production batch

Key Features / Specifications

• Brand: Square D (Schneider Electric)
• Model / Part #: HOM2125
• Product Type: Miniature circuit breaker
• Series / Range: Homeline
• Circuit Breaker Type: Standard
• Poles: 2P
• Current Rating: 125 A
• Voltage Rating: 120/240 V AC
• Mounting Type: Plug-in
• Short Circuit Current Rating (Interrupt): 10 kA
• Panel Spaces Required: 2
• Ratings: HACR rated
• Electrical Connection: Box lugs
• Wire Size: 1 conductor, AWG 4 to AWG 2/0 (copper or aluminum)
• Tightening Torque: 42.5 lbf·in (4.8 N·m) for AWG 4–2/0
• Dimensions (H × W × D): 3.13″ × 2.0″ × 2.98″ (79.5 × 50.8 × 75.69 mm)
• Certifications: UL Listed

Ideal For

• Homeline load centers needing a 125A 2-pole plug-in breaker
• Protecting 120/240V feeder circuits, subpanels, and large equipment loads
• HVAC and refrigeration circuits requiring HACR-rated protection
• Installations using AWG 4–2/0 copper or aluminum conductors with box lugs
• Fast panel service where plug-in mounting saves time
