Square D Homeline Circuit Breaker, 150A 2-Pole 4-Spaces

Square D Homeline Circuit Breaker, 150A 2-Pole 4-Spaces

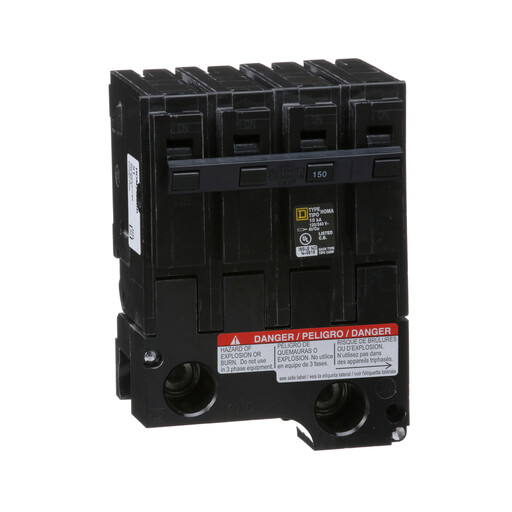

The HOM2150BB Square D Homeline Circuit Breaker, 150A (120/240V AC) is a plug-in Homeline® miniature circuit breaker designed for fast installation and dependable circuit protection in compatible Homeline load centers. Rated 150 amps and HACR compliant, it provides standard overcurrent protection with a 10 kA short-circuit interrupting rating and box lugs that accept a wide copper/aluminum wire range for flexible installations.

Country of Origin: Varies by production batch

Key Features / Specifications

• Model / SKU: HOM2150BB
• Brand / Series: Square D Homeline
• Product Type: Miniature circuit breaker
• Current Rating: 150 A
• Voltage Rating: 120/240 V AC
• Mounting Type: Plug-in
• Poles: 2-pole
• Number of Spaces: 4
• Breaker Type: Standard
• Ratings: HACR rated
• Short Circuit Current Rating (Interrupting): 10 kA
• Electrical Connection: Box lugs
• Wire Range: 1 × AWG 4 to 300 kcmil (copper or aluminum)
• Certifications: UL Listed
• Dimensions (H × W × D): 5.39" × 3.98" × 3.13"

Ideal For

• Adding or replacing a 150A breaker in Square D Homeline load centers
• 120/240V applications needing standard overcurrent protection with 10 kA interrupt rating
• HVAC-related circuits requiring a HACR-rated breaker
• Installations needing wide conductor compatibility via box lugs
• Service upgrades and panel maintenance where plug-in mounting speeds installation
