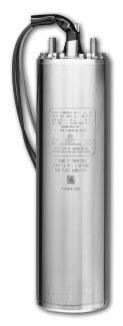

Sta-rite 2HP, 1PH, 230V Submersible Motor

Sta-rite 2HP, 1PH, 230V Submersible Motor

The Sta-Rite P43B0020A2 Pentek® XE Series 4" Submersible Motor is a rugged, high-efficiency solution built to keep water moving reliably in demanding environments. Delivering 2 horsepower on a 230V single-phase system, this motor features a laser-welded 304L stainless steel construction, heavy-duty thrust bearings, and a sealed epoxy stator design for long service life. Engineered for wells and water systems across residential, farm, and commercial use, it’s the kind of motor that works quietly in the background—exactly where you want it.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: P43B0020A2
• Series: Pentek® XE Series
• Product Type: 4" submersible well motor
• Horsepower: 2 HP
• Voltage: 230 V
• Phase: Single-phase (1PH)
• Motor Design: Encapsulated epoxy stator for durability and moisture protection
• Construction: Laser-welded 304L stainless steel exterior
• Motor Shaft: 17-4 precipitation hardened stainless steel
• Insulation: Class F (rated to 311°F / 155°C)
• Winding: Copper
• Thrust Bearing: Kingsbury-type pivot shoe design
• Thrust Load Capacity: 700 lbs
• Max Water Temperature: 86°F (30°C)
• Cable: 48" field-serviceable lead with compression seal
• Sand Protection: Nitrile sand boot
• Diaphragm: EPDM
• Certifications: UL, CSA, NSF/ANSI 61
• Testing: 100% factory pressure and run tested
• Protection: Integrated surge arrestor

Ideal For

• Residential, agricultural, and commercial well systems requiring dependable submersible performance
• Pumping clean water in farms, multi-housing setups, and industrial applications
• Installations needing high thrust capacity and long service life under heavy loads
• Environments where corrosion resistance and sealed motor construction are critical
• Anyone who prefers a motor that runs quietly underwater—and stays out of sight and out of trouble
