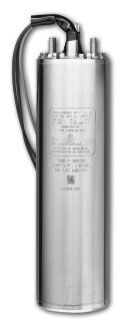

Sta-rite Pentek XE Series 3HP, 1PH, 230V Submersible Motor

The P43B0030A2 Sta-Rite Pentek XE Series 3HP Submersible Motor is a high-performance, heavy-duty 4-inch motor built for demanding water system applications where reliability isn’t optional. Engineered with laser-welded 304L stainless steel construction, high thrust capacity, and efficient, quiet operation, this motor is designed to keep wells, pumps, and water systems running smoothly for the long haul. With professional-grade Class F insulation, encapsulated epoxy stator design, and 100% factory testing, it’s built to thrive in tough environments—basically the kind of motor you install once and don’t want to think about again.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: P43B0030A2
• Series: Pentek® XE Series
• Motor Type: 4” submersible motor
• Horsepower: 3 HP
• Phase / Voltage: Single Phase (1PH), 230V
• Construction: Laser-welded 304L stainless steel exterior
• Motor Shaft: 17-4 precipitation hardened stainless steel
• End Bell: 304 stainless steel over cast iron
• Winding: Copper windings for durability and efficiency
• Insulation: Class F (311°F / 155°C rated) for extended service life
• Stator Design: Encapsulated epoxy stator for protection in harsh conditions
• Thrust Bearing: Kingsbury-type, pivot shoe design, rated to 700 lbs
• Efficiency: Designed for higher operating efficiency and quiet performance
• Electrical Design: 2-wire permanent split capacitor for smooth, efficient operation
• Controls Compatibility: 3-wire models compatible with Pentek SMC & VIP controls
• Testing: 100% factory pressure and run tested
• Certifications: UL, CSA approved, NSF/ANSI 61 certified
• Protection: Integrated surge arrestor
• Max Water Temperature: 86°F (30°C)
• Cable: 48” field-serviceable lead, UL & CSA approved
• Seals & Components: EPDM diaphragm, nitrile sand boot, 304 stainless fasteners

Ideal For

• Residential, agricultural, and commercial water systems
• Deep well pump applications requiring reliable submersible motors
• Farm and irrigation setups where uptime is critical
• Multi-housing or industrial water supply systems
• Anyone needing a motor that handles heavy loads, harsh conditions, and long hours without complaint
