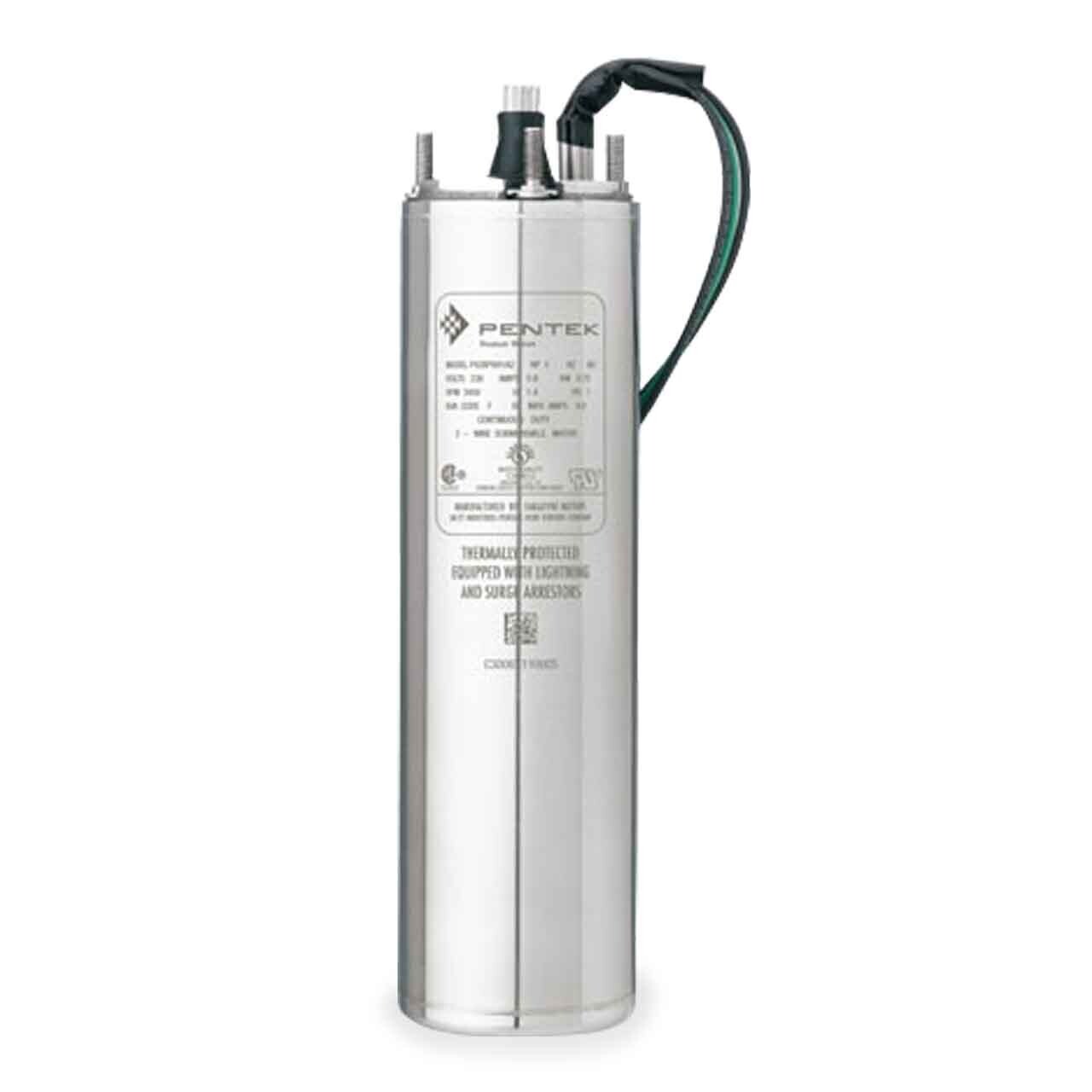

Sta-rite Pentek XE Series 5HP, 1PH, 230V Submersible Motor

PENTEK XE SERIES

4” SUBMERSIBLE MOTORS

Built with the latest design, manufacturing and testing technology, the Pentek® XE Series submersible motors feature laser-welded 304L stainless steel construction, higher thrust capacities, and higher efficiencies. They incorporate encapsulated, epoxy stator design, and the professional-grade Class F insulation provides longer life in harsh environments. Each motor is 100% factory pressure and run tested to support our quality standards.

APPLICATIONS

Water systems for residential, industrial, commercial, multiple housing and farm clean water use.

 700# Rated Kingsbury Thrust Bearing Design: Large high-performance bearings are standard on all HPs allowing for higher thrust loads, providing many years of trouble free service under severe duty operation.

 2-Wire Permanent Split Capacitor: Design insures quiet operation and improved operating efficiency.

 3-Wire Motors: Operate with Pentek SMC and Pentek VIP motor controls.

 All Stainless Steel Exterior

 Professional-Grade Class F-Compliant Motor Insulation: Allows for longer service life.

 UL, CSA Approved and NSF/ANSI 61 Certified

 100% Factory Pressure and Run Tested

 Equipped with Surge Arrestor

 Automatic Thermal Protection on 1/2 – 1 HP Models

SPECIFICATIONS

 End Bell: 304 stainless steel over cast iron.

 Shell: 304 stainless steel.

 Motor Shaft: 17-4 precipitation hardened stainless steel.

 Winding: Copper.

 Insulation: Class F, 311°F (155°C).

 Max. Water Temp: 86°F (30°C).

 Fasteners: 304 stainless steel.

 Sand Boot: Nitrile.

 Cable: Field serviceable, controlled compression design, UL and CSA approved.

 Cable Length: 48”.

 Diaphragm: EPDM.

 Thrust Bearings: Kingsbury-type, pivot shoe, carbon graphite mating ring.

 Thrust Load Capacity: 700 lbs.
