Sta-rite Pump Controller, 5HP, 230V 1PH

Sta-rite Pump Controller, 5HP, 230V 1PH

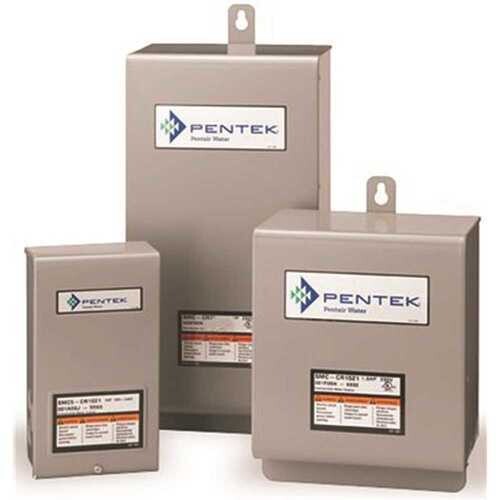

The Sta-Rite SMC-CR5021 Pump Controller is a rugged, reliable control solution designed to manage and protect 5 HP single-phase submersible pump systems. Built for residential, agricultural, and commercial water systems, it provides dependable motor control with heavy-duty internal components and built-in overload protection. Housed in a NEMA 3R enclosure, it’s ready for both indoor and outdoor installations—because pump control doesn’t stop when the weather turns.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: SMC-CR5021
• Product Type: Submersible pump controller
• Horsepower Rating: 5 HP
• Voltage: 230V
• Phase: Single-phase (1PH)
• Motor Compatibility: 3-wire submersible motors (4" class and similar)
• Enclosure: NEMA 3R rated for indoor/outdoor use
• Temperature Rating: Up to 50°C (122°F)
• Relay: High-load voltage relay for reliable switching
• Contacts: Heavy-duty contacts for long service life
• Wiring Capacity: Accepts up to #4 AWG wire
• Connections: Industry-standard wiring with clear diagrams
• Overload Protection: Built-in (on applicable models) with external reset access
• Access: External overload reset for quick service (1.5–5 HP range)
• Knockouts: Multiple-size electrical knockouts for flexible installation
• Certifications: CSA CUS certified
• Compatibility: Works with Pentek XE Series and other 4" single-phase motors

Ideal For

• Controlling submersible well pumps in residential or farm systems
• Installations requiring durable indoor/outdoor-rated enclosures
• Systems needing reliable overload protection and easy reset access
• Electricians and installers who want straightforward wiring and setup
• Anyone who prefers their pump controls solid, simple, and not the weak link in the system
