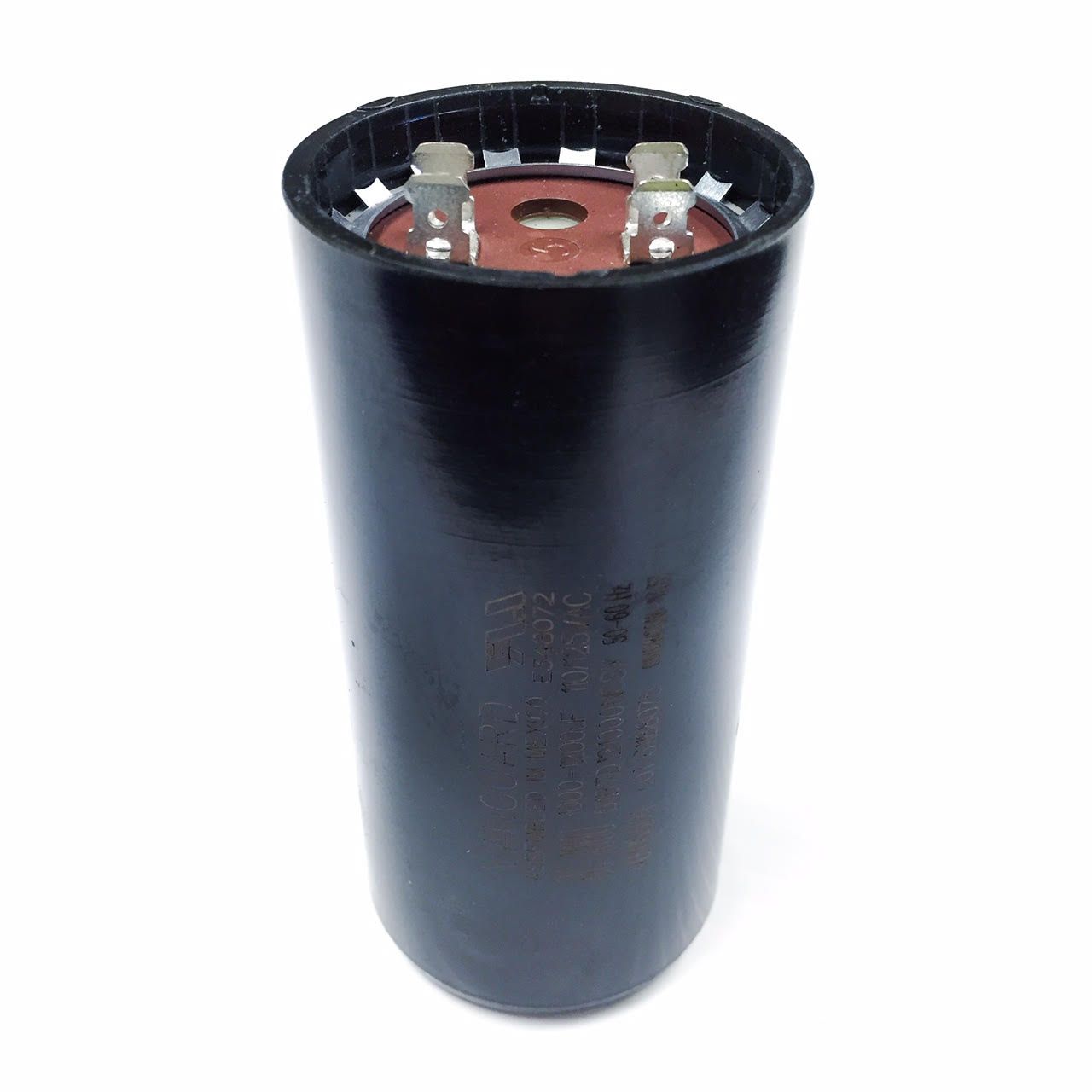

Start Capacitor, 1000-1200MFD 125V

The BC-1000 Start Capacitor is a high-capacitance motor start capacitor designed to provide the extra starting torque needed for compatible electric motors. Rated 1000–1200 µF at 110/125 VAC, it features a round phenolic case, four 1/4" spade terminals, and a wide operating temperature range for reliable performance in demanding environments.

Country of Origin
Made in Mexico

Key Features / Specifications

• Brand / Series: Vanguard
• Model / Part Number: BC-1000 (also listed as 61B7D121000NCSX)
• Product Type: Start capacitor
• Capacitance: 1000–1200 µF (MFD/uF)
• Voltage Rating: 110/125 VAC
• Frequency: 50/60 Hz
• Temperature Range: -40°C to +65°C (-40°F to 149°F)
• Case Style / Material: Round phenolic
• Connection Type: Four 1/4" spade terminals
• Resistor: None
• Dimensions: 2-1/16" dia (±0.02") × 4-3/8" length (+0.02"/-0.03")
• Weight: 0.60 lb
• Certifications: UL Recognized
• UPC: N/A

Ideal For

• Replacing a failed start capacitor with a matching 1000–1200 µF rating
• Electric motor applications requiring added starting torque at 110/125 VAC
• Installations needing a capacitor with four 1/4" spade terminals
• Equipment exposed to wide temperature swings from -40°F to 149°F
• Maintenance and repair work where UL Recognized components are preferred
