Start Capacitor 189-227MFD 220VAC

Vanguard Start Capacitor 189-227MFD 220VAC

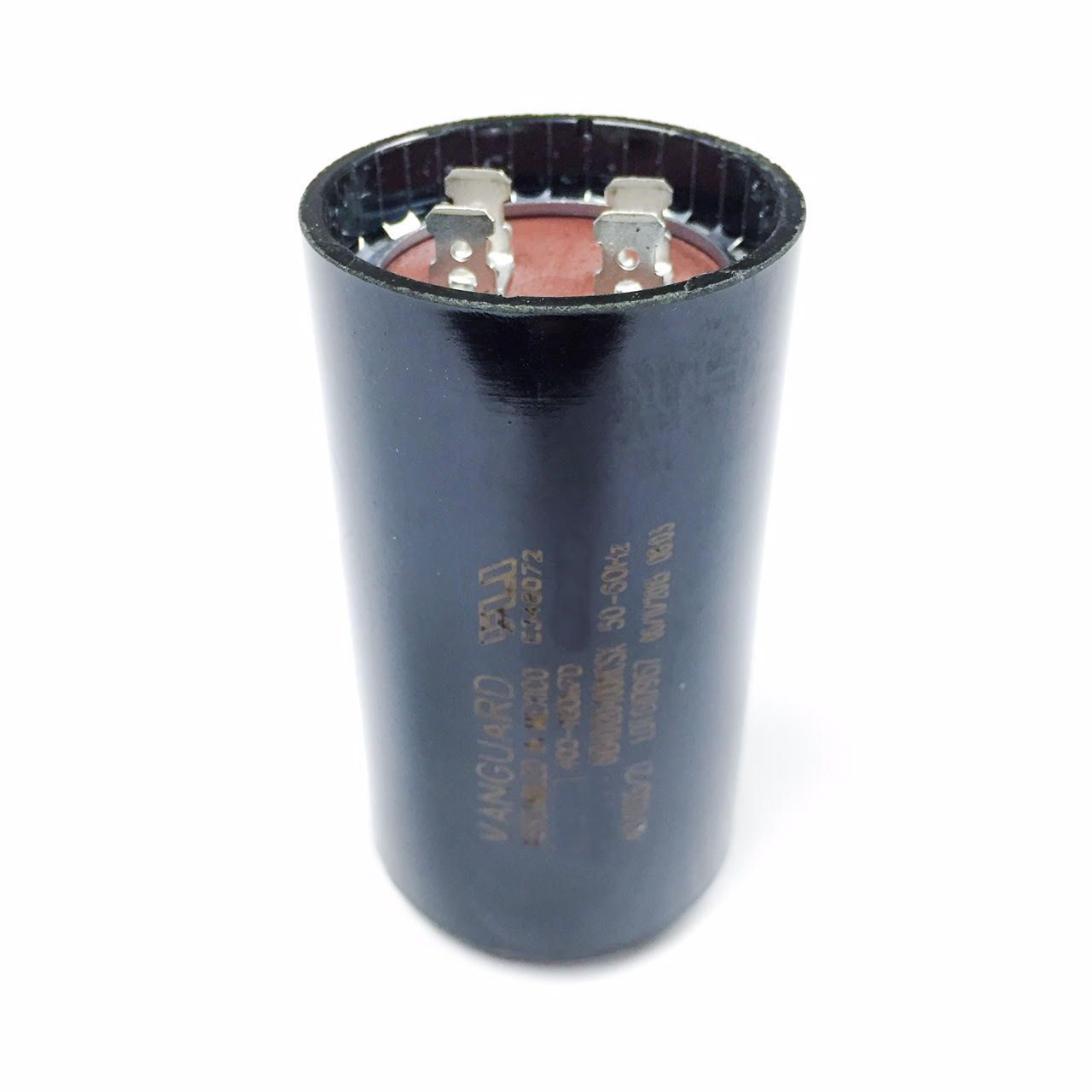

The BC-189M-250 Vanguard Start Capacitor is a motor start capacitor designed to provide the extra starting boost needed for compatible motors in HVAC and other motor-driven equipment. Rated 189–227 µF at 250 VAC with a round phenolic case and four 1/4" spade terminals, it’s built for dependable starts across a wide temperature range—because motors shouldn’t need a second cup of coffee to get going.

Country of Origin
Mexico

Key Features / Specifications

• Model / Part Number: BC-189M-250 (Alt ID: 61B7D250189NCSX)
• Brand: Vanguard
• Product Type: Start capacitor
• Capacitance: 189–227 µF (MFD)
• Voltage Rating: 250 VAC
• Frequency: 50/60 Hz
• Temperature Range: -40°C to +65°C (-40°F to 149°F)
• Case Style / Material: Round phenolic case
• Connection Type: Four 1/4" spade terminals
• Resistor: None
• Dimensions: 2-1/16" diameter (±0.02"); 4-3/8" length (+0.02"/-0.03")
• Weight: 0.50 lbs
• Certifications: UL Recognized
• UPC: N/A

Ideal For

• Replacing a compatible motor start capacitor in HVAC and motor applications
• Systems requiring 189–227 µF at 250 VAC
• Installations needing a round phenolic case and multiple spade terminals for wiring flexibility
• Equipment operating in temperature extremes from -40°F to 149°F
