Start Capacitor, 216-259MFD 125V

Vanguard Start Capacitor, 216-259MFD 125V

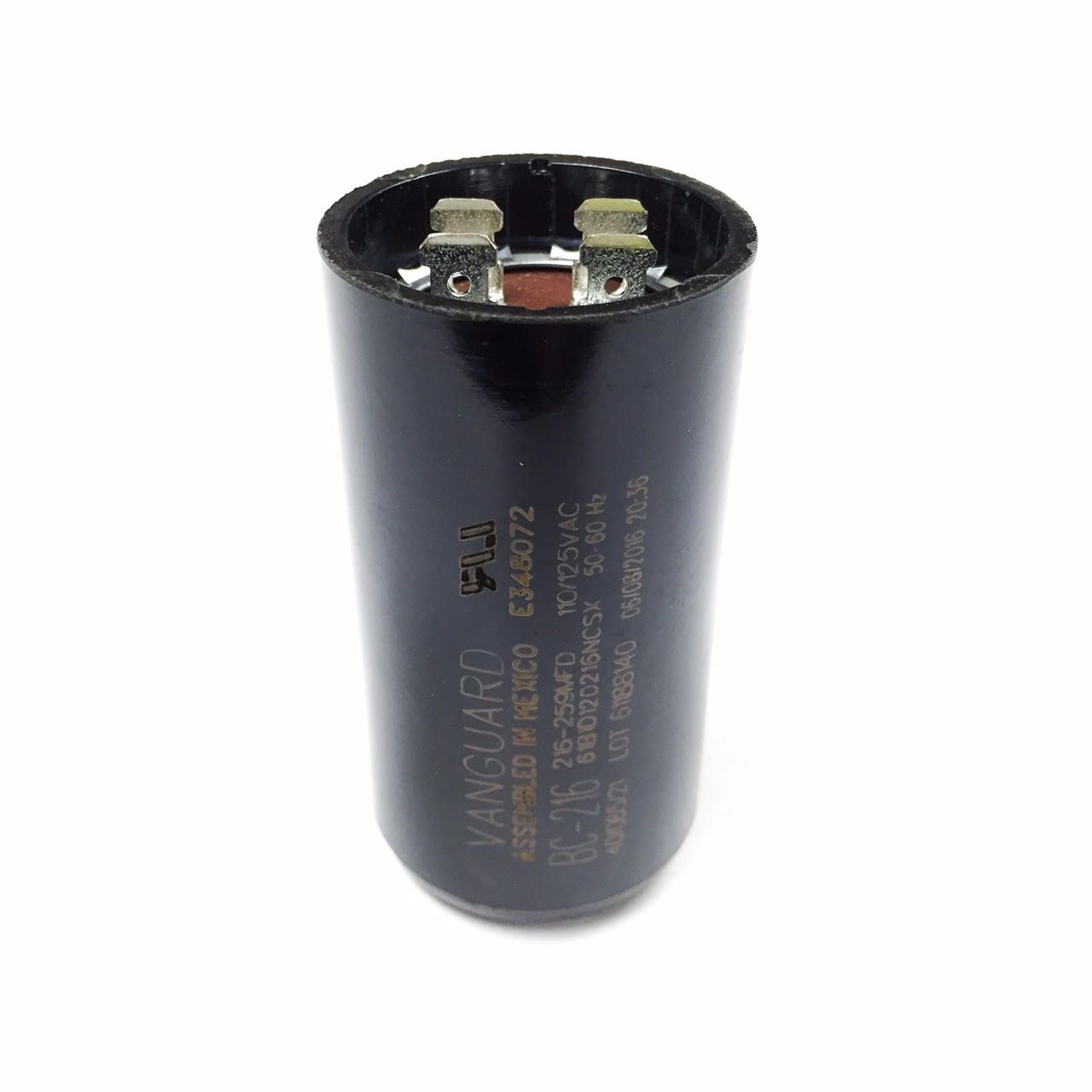

The BC-216 Vanguard Start Capacitor is a dependable motor start capacitor designed to provide the extra starting punch needed for compatible single-phase motors to get moving quickly and consistently. Rated 216–259 µF at 110–125 VAC, it features a round phenolic case and four 1/4" spade terminals for easy installation—because your motor should start like it means it, not like it’s thinking about it.

Country of Origin
Mexico

Key Features / Specifications

• Brand: Vanguard
• Model / Part Number: BC-216
• Additional Part Number: 61B1D120216NCSX
• Product Type: Start capacitor
• Capacitance: 216–259 µF (MFD/uF)
• Voltage Rating: 110–125 VAC
• Frequency: 50/60 Hz
• Temperature Range: -40°C to +65°C (-40°F to 149°F)
• Case Style / Material: Round phenolic
• Dimensions:
  • Diameter: 1-7/16 in ± 0.02 in
  • Length: 2-3/4 in +0.02 in / -0.03 in
• Connection Type: Four 1/4 in spade terminals
• Resistor: None
• Certifications: UL Recognized
• Weight: 0.20 lb
• UPC: N/A

Ideal For

• Replacing a failed start capacitor in compatible single-phase motor applications
• Equipment needing a 216–259 µF start capacitor rated for 110–125 VAC
• Installations exposed to wide temperature swings (-40°C to +65°C)
• Maintenance repairs where reliable motor starting is the whole point
