Start Capacitor, 400-480MFD 125V

Vanguard Start Capacitor, 540-648MFD 125V

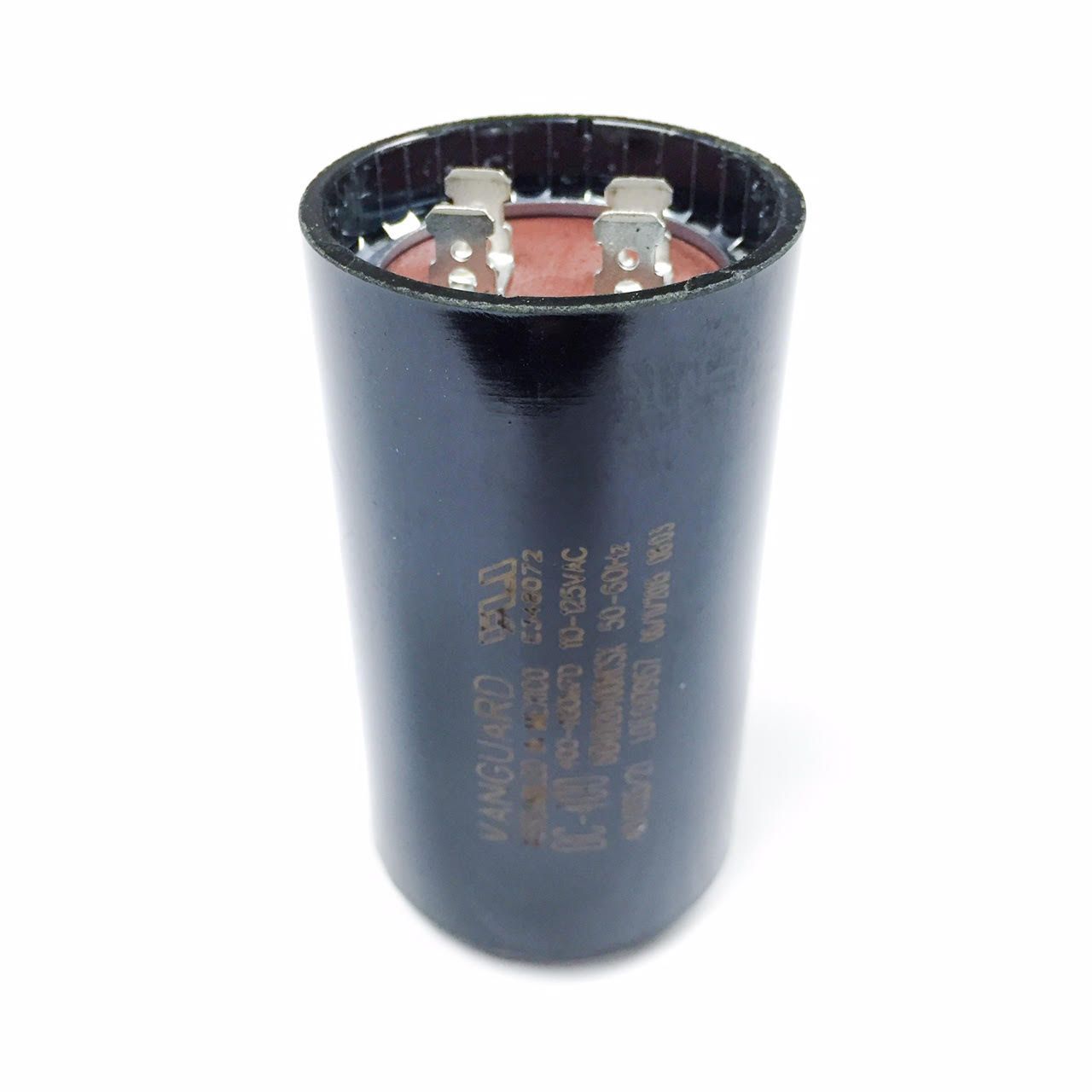

The BC-400 Vanguard Start Capacitor is a reliable motor start capacitor designed to deliver the extra boost needed for smooth, efficient startups in HVAC and other electric motor applications. Rated for 400–480 MFD at 110–125 VAC, this round phenolic capacitor is built for consistent performance across 50/60 Hz systems and a wide operating temperature range. Compact yet durable, it features four 1/4” spade terminals for secure connections and is UL Recognized for dependable service when it matters most.

Country of Origin
Mexico

Key Features / Specifications

• Model / Part Number: BC-400 (61B4D120400NCSX)
• Brand: Vanguard
• Product Type: Start Capacitor
• Capacitance Rating: 400–480 MFD (uF)
• Voltage Rating: 110–125 VAC
• Frequency: 50/60 Hz
• Operating Temperature Range: -40°C to +65°C (-40°F to 149°F)
• Case Style: Round Phenolic
• Connection Type: Four 1/4” spade terminals
• Resistor: None
• Diameter: 1-13/16” ± .02”
• Length: 3-3/8” +.02” / -.03”
• Weight: 0.35 lbs
• Certification: UL Recognized
• UPC: N/A

Ideal For

• HVAC and motor applications requiring a 400–480 MFD start capacitor
• Systems operating on 110–125 VAC
• Equipment exposed to wide temperature ranges
• Technicians needing a compact, UL-recognized replacement capacitor
• Service calls where a dependable startup makes all the difference
