Start Capacitor, 400-480MFD 250V

Start Capacitor, 400-480MFD 250V

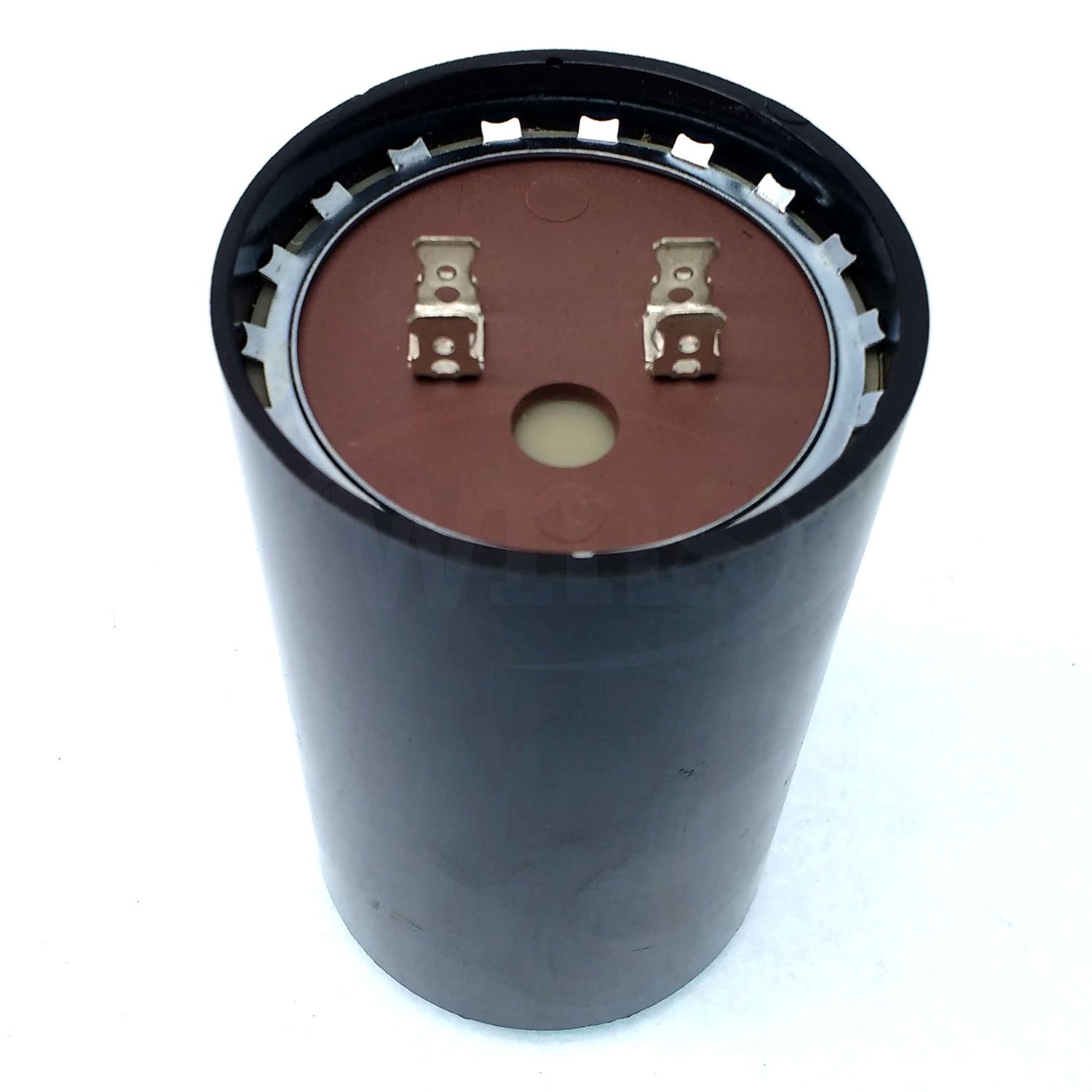

The Vanguard BC-400M-250 Start Capacitor is a motor start capacitor designed to deliver the high starting torque boost needed for compatible single-phase electric motors. Rated at 400–480 MFD (µF) and 220–250 VAC, it’s built with a rugged round phenolic case, four 1/4" spade terminals for straightforward wiring, and a wide -40°C to +65°C operating range. It is UL Recognized for added confidence in electrical applications.

Country of Origin
Mexico

Key Features / Specifications

• Model / Part Number: BC-400M-250
• Additional ID: 61B8D250400NCSX
• Brand: Vanguard
• Product Type: Start capacitor
• Capacitance: 400–480 MFD (µF)
• Voltage Rating: 220–250 VAC
• Frequency: 50/60 Hz
• Temperature Range: -40°C to +65°C (-40°F to 149°F)
• Case Style / Material: Round phenolic
• Connection Type: Four 1/4" spade terminals
• Resistor: None
• Dimensions: 2-9/16" diameter ±.02"; 4-3/8" length +.02"/-.03"
• Weight: 0.70 lb
• Certifications: UL Recognized
• UPC: N/A

Ideal For

• Replacing a failed start capacitor in compatible single-phase motors
• Motor circuits requiring 400–480 µF at 220–250 VAC
• Applications needing dependable starting performance across 50/60 Hz
• Installations exposed to wide temperature swings (-40°C to +65°C)
• Service techs stocking common start capacitors for motor and equipment repairs
