Start Capacitor, 460-552MFD 125V

Vanguard Start Capacitor, 460-552MFD 125V

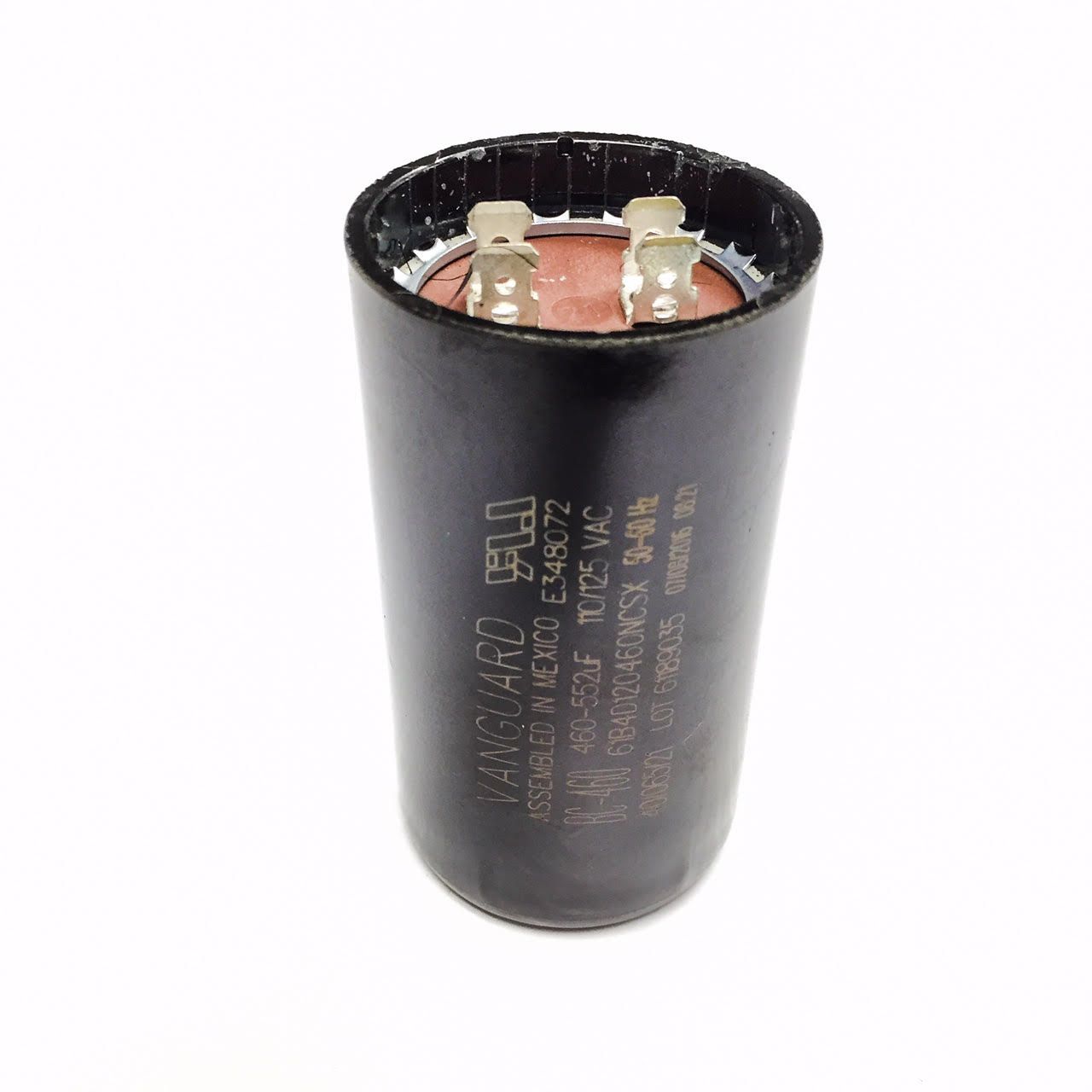

The BC460 Vanguard Start Capacitor is a high-capacitance motor start capacitor designed to deliver the extra kick needed for reliable motor starting in compatible HVAC and motor applications. With a round phenolic case, four 1/4" spade terminals, and a 460–552 µF rating at 110–125 VAC, it’s built for dependable starts across a wide temperature range—because motors should start on the first try, not after a pep talk.

Country of Origin
Mexico

Key Features / Specifications

• Model / Part Number: BC-460 (Alt ID: 61B4D120460NCSX)
• Brand: Vanguard
• Product Type: Start capacitor
• Capacitance: 460–552 µF (MFD)
• Voltage Rating: 110–125 VAC
• Frequency: 50/60 Hz
• Temperature Range: -40°C to +65°C (-40°F to 149°F)
• Case Style / Material: Round phenolic case
• Connection Type: Four 1/4" spade terminals
• Resistor: None
• Dimensions: 1-13/16" diameter (±0.02"); 3-3/8" length (+0.02"/-0.03")
• Weight: 0.35 lbs
• Certifications: UL Recognized
• UPC: N/A

Ideal For

• Replacing a compatible motor start capacitor in HVAC and motor-driven equipment
• Applications requiring 460–552 µF at 110–125 VAC
• Installations needing a compact round case and multiple spade terminals for wiring flexibility
• Equipment operating in tough environments with temps from -40°F to 149°F
