Start Capacitor, 540-648MFD 125V

Vanguard Start Capacitor, 540-648MFD 125V

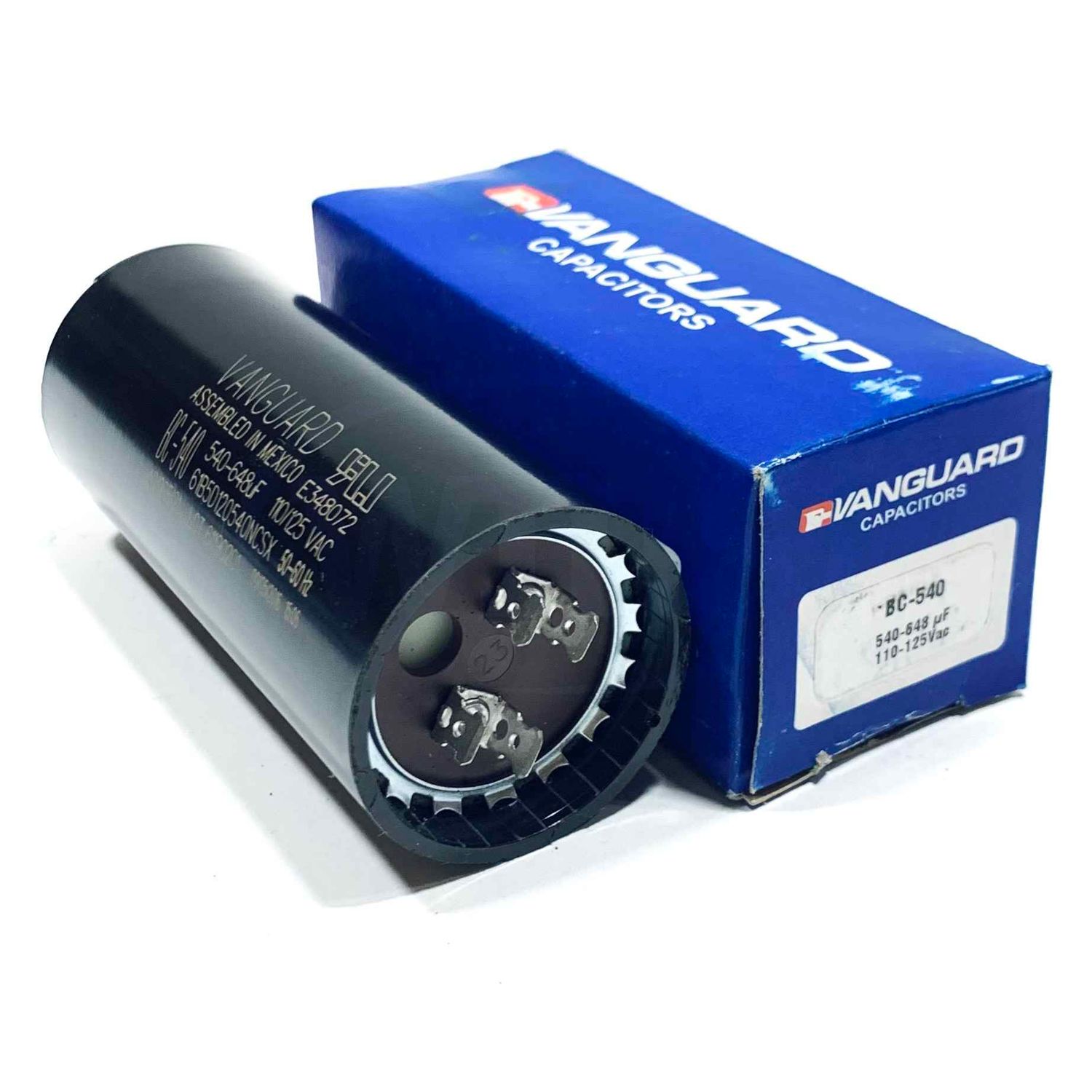

The BC-540 Vanguard Start Capacitor is a high-capacitance motor start capacitor designed to deliver the strong starting boost needed to get compatible single-phase motors up to speed quickly and reliably. Rated 540–648 µF at 110–125 VAC, it’s built with a round phenolic case and four 1/4" spade terminals for straightforward installation—because a motor that won’t start is just an expensive paperweight with attitude.

Country of Origin
Mexico

Key Features / Specifications

• Brand: Vanguard
• Model / Part Number: BC-540
• Product Type: Start capacitor
• Capacitance: 540–648 µF (MFD/uF)
• Voltage Rating: 110–125 VAC
• Frequency: 50/60 Hz
• Temperature Range: -40°C to +65°C (-40°F to 149°F)
• Case Style / Material: Round phenolic
• Dimensions:
  • Diameter: 1-13/16 in ± 0.02 in
  • Length: 3-3/8 in +0.02 in / -0.03 in
• Connection Type: Four 1/4 in spade terminals
• Resistor: None
• Certifications: UL Recognized
• Weight: 0.35 lb
• UPC: N/A

Ideal For

• Replacing a failed start capacitor in compatible single-phase motor applications
• Equipment needing a 540–648 µF start capacitor at 110–125 VAC
• Installations where wide temperature tolerance (-40°C to +65°C) matters
• Techs who want a dependable start boost without the “will it or won’t it” drama
