Start Capacitor, 590-708MFD 125V

Vanguard Start Capacitor, 590-708MFD 125V

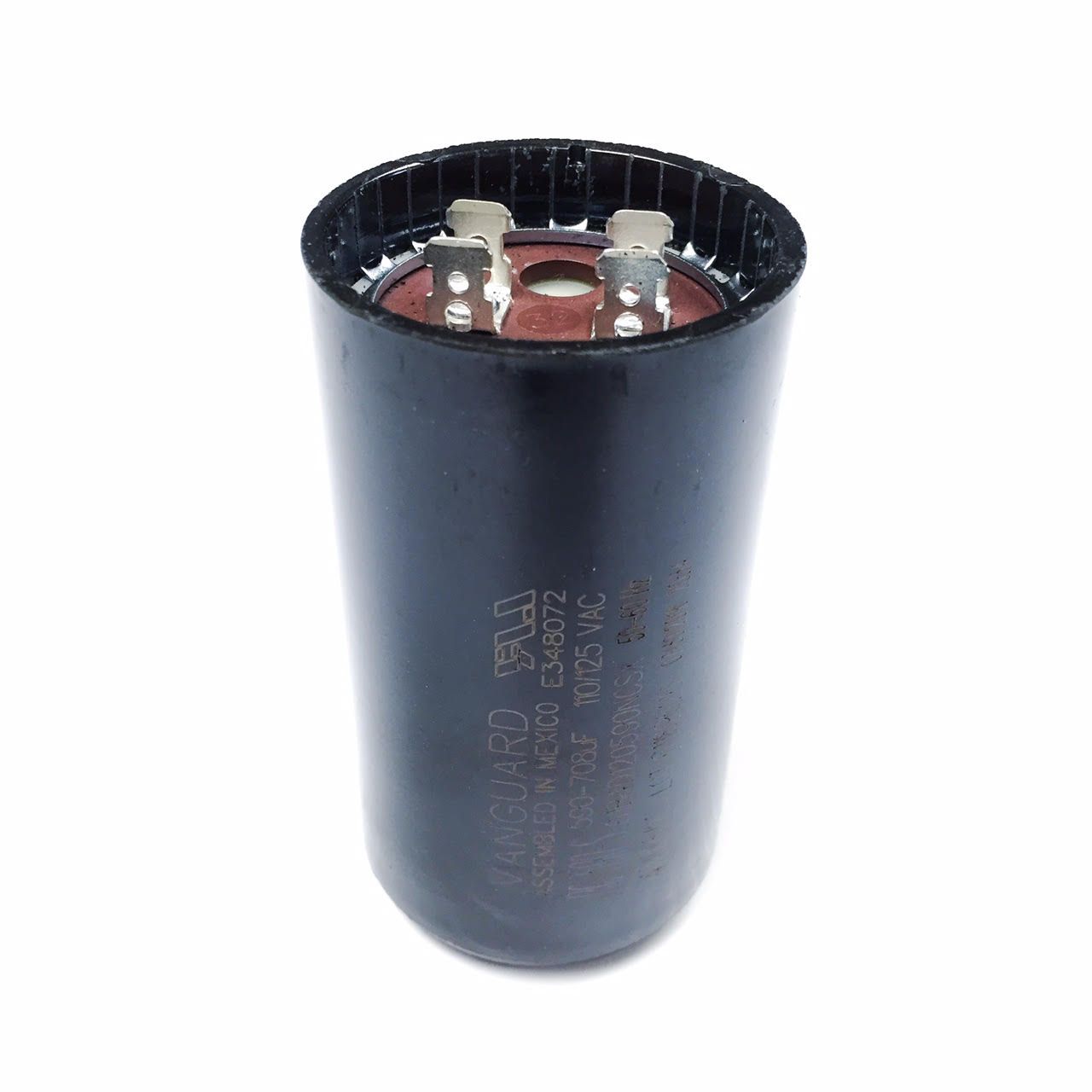

The BC-590-S Vanguard Start Capacitor is a high-capacitance motor start capacitor rated at 590–708 MFD for 110–125 VAC applications, built to deliver the extra starting boost many electric motors need. With a round phenolic case, four 1/4" spade terminals, and UL Recognized certification, it’s a solid replacement when a motor just hums and stares at you instead of starting.

Country of Origin
Made in Mexico

Key Features / Specifications

• Brand: Vanguard
• Part Number: BC-590-S
• MFG Reference: 61B4D120590NCSX
• Type: Start Capacitor
• Capacitance: 590–708 MFD (uF)
• Voltage Rating: 110–125 VAC
• Frequency: 50/60 Hz
• Temperature Range: -40°C to +65°C (-40°F to 149°F)
• Case: Round phenolic
• Dimensions:
  • Diameter: 1-13/16" ± 0.02"
  • Length: 3-3/8" +0.02"/-0.03"
• Connection Type: Four 1/4" spade terminals (two terminals on each post)
• Resistor: None
• Certifications: UL Recognized
• Weight: 0.35 lbs
• UPC: N/A

Ideal For

• Replacing a failed motor start capacitor in compatible 110–125 VAC equipment
• Motors that hum but won’t start or struggle to get up to speed
• Applications needing a 590–708 MFD start capacitor with 1/4" spade terminals
• Environments requiring broad temperature tolerance from -40°F to 149°F
