T-Seal, Dash Size 334

T-Seal, Dash Size 334

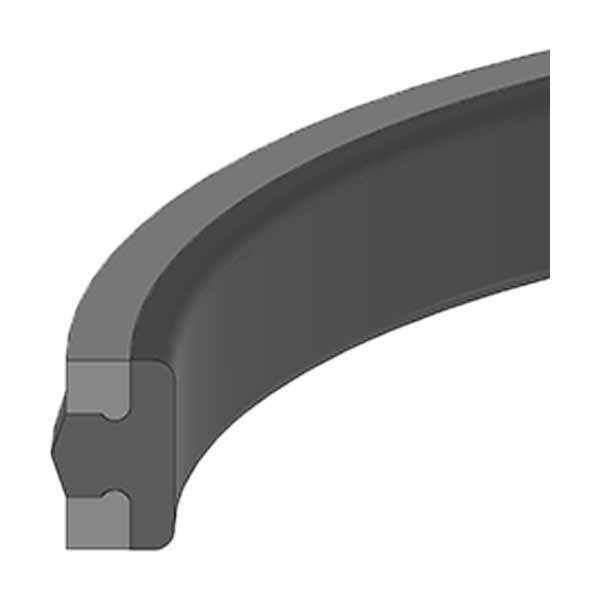

The TP-032 Piston T-Seal (TP-334-WB) is a wide base piston T-seal sized 2.625" ID x 3.000" OD x 0.424" height, designed to provide non-spiraling, extrusion-resistant sealing up to 5,000 PSI with improved tolerances. Built with a Buna-N rubber seal and hard plastic back-ups, this Wide Base (WB) style is made to fit MIL-5514F O-ring glands and interchange with grooves that use 1 O-ring + 2 back-up rings—so you get high-pressure performance without turning your seal groove into a custom art project.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: TP-334-WB (TP-032)
• Brand: Hercules
• Product Type: Piston T-seal (Wide Base)
• Nominal Size (ID x OD x Height): 2.625 in x 3.000 in x 0.424 in (2-5/8 x 3 x .424)
• Material: Buna-N rubber seal with hard plastic back-ups
• Temperature Range: -35° to +220°F
• Pressure Range: 0 to 5,000 PSI
• Max Speed: 3 ft/sec
• O-Ring Dash Number: 334
• Groove Diameter (H): 2.627 in
• Groove Width (D): 0.424 in
• Bore: 3.000 in
• Design Notes: Non-spiraling, extrusion resistant, improved tolerances
• Gland Compatibility: Intermediate/Wide Base T-seals fit MIL-5514F O-ring glands only
• Interchange Note (WB): Interchanges with grooves using 1 O-ring + 2 back-up rings
• Weight: 0.0300 lb

Ideal For

• Hydraulic pistons needing a 2.625" ID / 3.000" OD seal with wide base stability
• High-pressure cylinder applications up to 5,000 PSI where extrusion resistance is critical
• MIL-standard gland setups using MIL-5514F O-ring glands
• Rebuilds where you want a seal that won’t spiral and won’t try to escape the groove under load
• Systems operating across -35°F to +220°F temperature ranges
