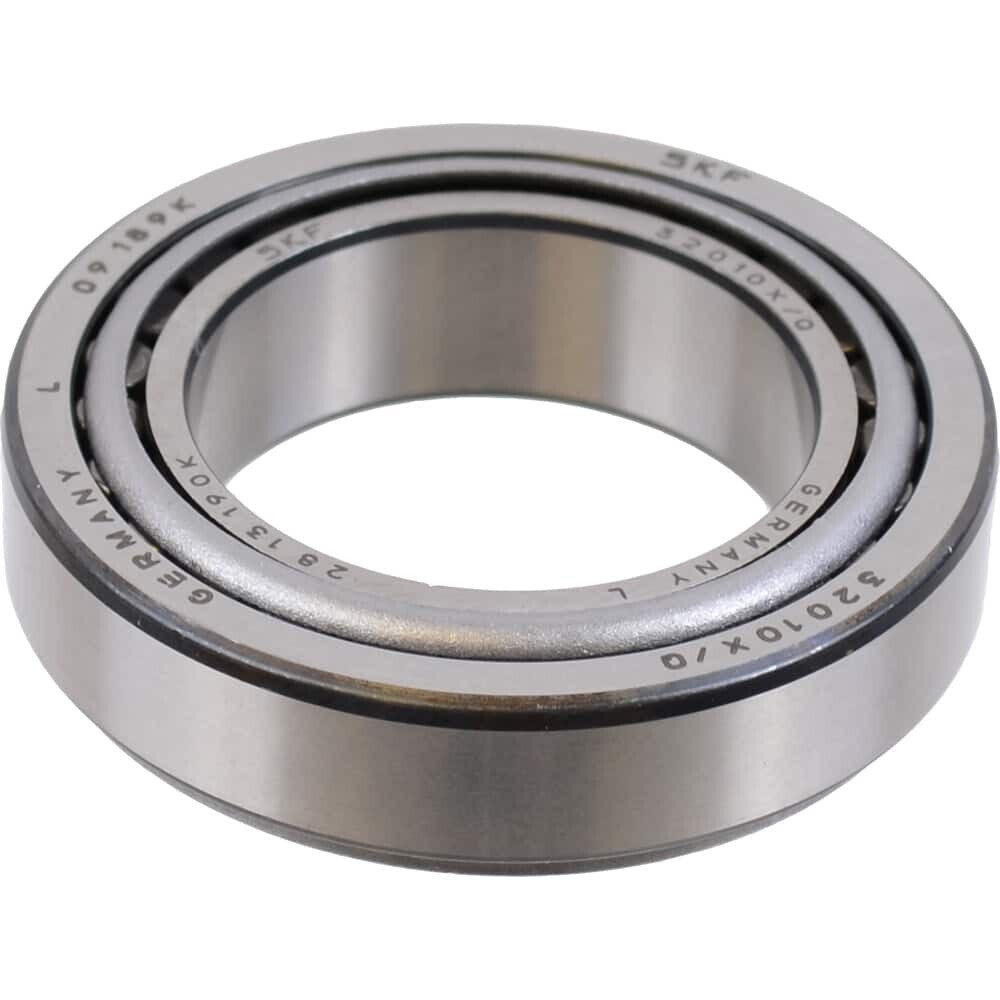

Tapered Bearing Set, 50X80X20MM

KML Bearing Tapered Bearing Set, 50X80X20MM

The 32010 Tapered Bearing Set is a single-row tapered roller bearing designed to handle combined radial and axial loads with low-friction, long-life performance. Its separable inner and outer ring components simplify installation and service, and pairing two bearings with preload can create a rigid bearing arrangement for demanding rotating applications.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 32010
• Product Type: Tapered bearing set / single-row tapered roller bearing
• Bearing Design: Single row tapered roller
• Load Capacity: Handles high radial loads and axial loads in one direction
• Operating Benefit: Low friction for long service life
• Serviceability: Separable and interchangeable inner/outer components for easier mounting and maintenance
• Bore Diameter: 1.969 in (50 mm)
• Outside Diameter: 3.15 in (80 mm)
• Total Width: 0.787 in (20 mm)
• Inner Ring Width: 0.787 in
• Outer Ring Width: 0.61 in
• Contact Angle: 15.75°
• Dimensions (Metric): 50 × 80 × 20 mm

Ideal For

• Wheel hubs, gearboxes, and rotating equipment needing combined radial + axial load support
• Applications requiring axial load capacity in one direction
• Repairs where separable bearing components simplify installation and service
• Assemblies that use matched tapered bearings with preload for added rigidity
• General industrial and mechanical equipment using 50 × 80 × 20 mm tapered bearings
