Tapered Pin Kit

Tapered Pin Kit

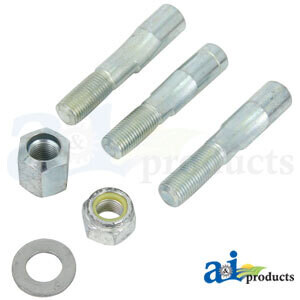

The A-BP408000076 Tapered Pin Kit is a new replacement tapered pin kit used for FF clutches, designed to fit correctly by using the pin that seats completely into the hub until the threads protrude. This kit replaces Bondioli & Pavesi BP408000076 and includes 3 pins and 2 nuts (with washer). The tapered pin size is 1-3/4"–6 spline x 1-3/4"–20 spline, and it is specified for 160 ft-lbs (220 Nm) torque.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: A-BP408000076
• Product Type: Tapered pin kit
• Condition: New
• Application: Used for FF clutches
• Replaces: Bondioli & Pavesi BP408000076
• Size: 1-3/4"–6 spline x 1-3/4"–20 spline
• Torque Spec: 160 ft-lbs (220 Nm)
• Included: 3 pins and 2 nuts (= washer)
• Quantity Required: 1 kit
• Fitment Note: Use the pin that fits completely into the hub until threads protrude (discard the pin that does not fit)
• Original Reference: Original Bondioli & Pavesi part number referenced

Ideal For

• Replacing worn/damaged tapered pins on FF clutches
• Repairs needing a direct replacement for Bondioli & Pavesi BP408000076
• Installations requiring the correct hub-seating tapered pin fitment method
• PTO/clutch service work where 160 ft-lbs (220 Nm) torque spec is required
• Shops wanting a complete kit with multiple pins plus the required hardware
