Taylor Pittsburgh 3-Point Disc Harrow w/Square Tubing Frame, 7-1/2Ft

Taylor Pittsburgh 3-Point Disc Harrow w/Square Tubing Frame, 7-1/2Ft

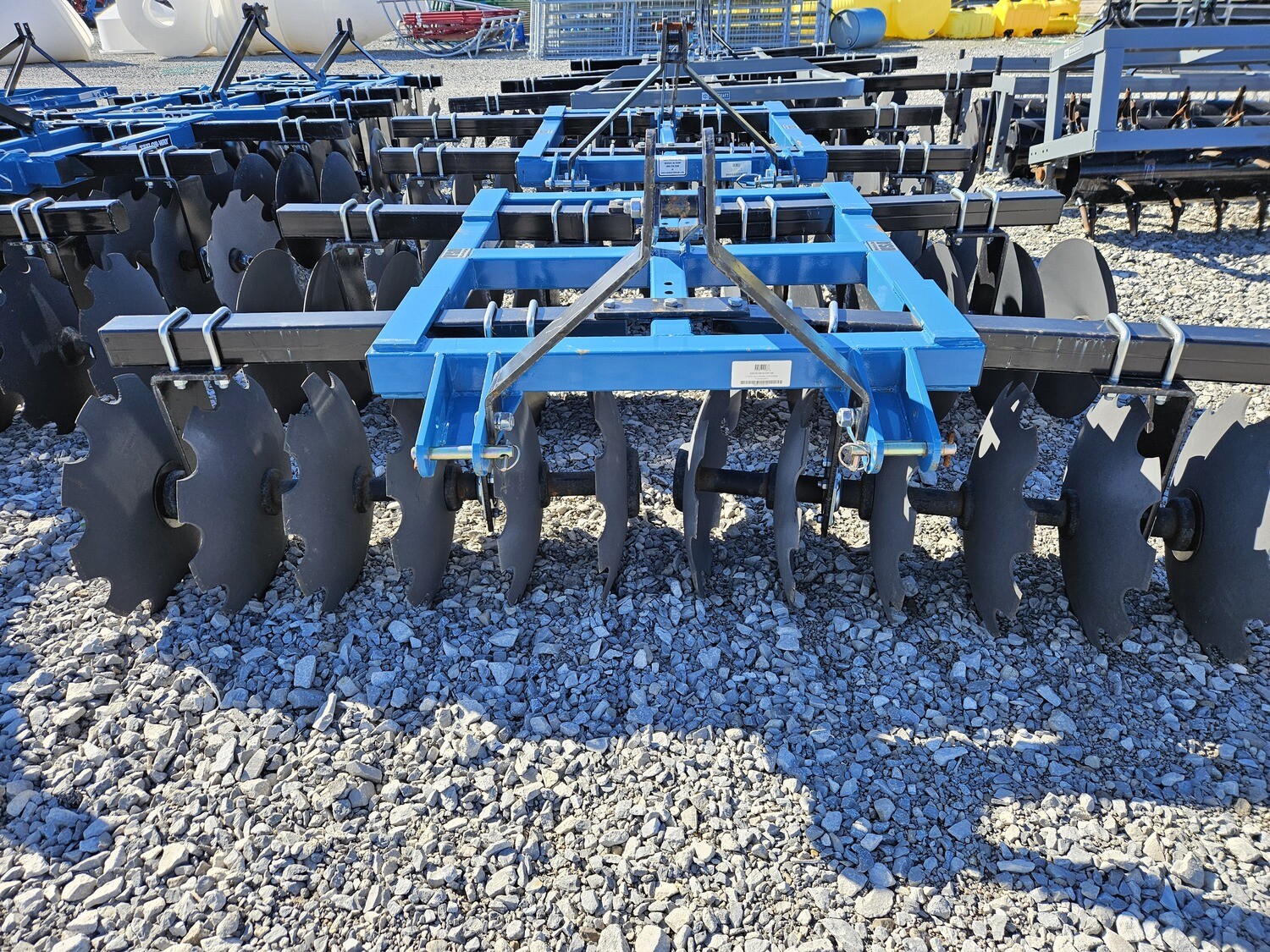

The Taylor Pittsburgh 233-20-24-G-CBF Disc Harrow is a field-proven, heavy-duty tillage tool built for serious ground prep without the drama. With a 7½ ft working width and a rugged box frame constructed from 3" square tubing, this unit is designed to break up soil, manage residue, and prep seedbeds across gardens, wildlife plots, vineyards, and small acreage farms. Featuring 7½" blade spacing, EZ cutting angle adjustments, and adjustable gang angles (0°, 15°, 30°), it gives you the flexibility to go from light tillage to aggressive soil cutting—depending on how stubborn your ground is feeling that day.

Country of Origin
Made in the U.S.A.

Key Features / Specifications

• Model / Part Number: 233-20-24-G-CBF-BX
• Series: Taylor Pittsburgh Series 233
• Product Type: 3-Point Tandem Box Frame Disc Harrow
• Working Width: 7½ ft
• Approx. Weight: 1,012 lbs. (built like it means it)
• Tractor Compatibility: Category I Quick Hitch compatible
• Recommended HP Range: 45 – 75 HP
• Frame Construction: Heavy-duty 3" square tubing box frame
• Blade Spacing: 7½" spacing for effective soil penetration and residue management
• Gang Configuration: Tandem disc setup
• Adjustability: EZ cutting angle adjustments
• Gang Angles: 0°, 15°, 30° adjustable for varying soil conditions
• Axles: 1" square high carbon steel axles
• Bearings: Sealed ball bearings for reduced maintenance
• Spacers: Cast iron disc spacers for durability and consistent spacing
• Design Advantage: Box frame provides added strength and stability over rough terrain

Ideal For

• Gardens, wildlife plots, vineyards, and small acreage farms
• Breaking up compacted soil and prepping seedbeds
• Operators needing adjustable aggressiveness with multiple gang angles
• Tractors in the 45–75 HP range looking for a properly matched implement
• Anyone tired of light-duty harrows pretending to be tough (this one actually is)
