TeeJet Directo Valve

TeeJet Directo Valve

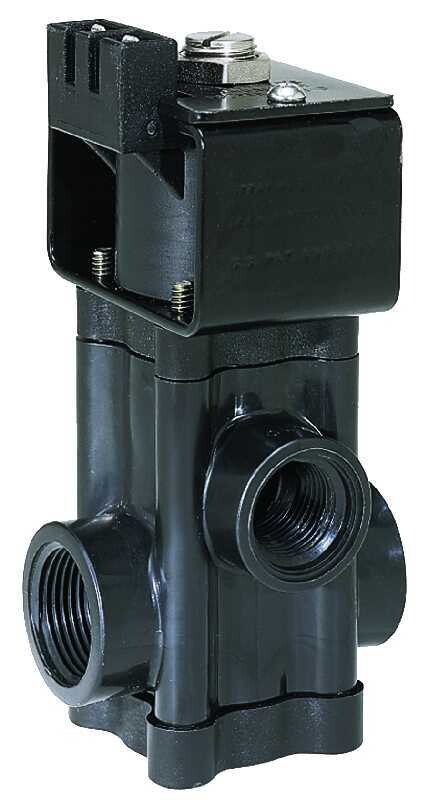

The TeeJet DirectoValve Solenoid Valve (144A, 1-Valve Bank) is a rugged, direct-acting control valve designed for sprayer systems where reliable flow control and reduced clogging are critical. Its large flow chamber eliminates the need for a pilot hole—helping minimize blockage risk—while stainless steel wetted parts add corrosion resistance. Built for 12V operation up to 100 PSI, it uses Viton diaphragms and seat washers, and features an encapsulated solenoid coil that can be changed without removing the valve from the system. Continuous flow is maintained through the bypass, with on/off control directing flow to the spray line.

Country of Origin: Varies by production batch

Key Features / Specifications

• Brand: TeeJet
• Model: 144A DirectoValve
• Product Type: Direct-acting solenoid valve (bank of 1)
• System Voltage: 12V
• Max Pressure (as stated): Up to 100 PSI
• Design: Direct-acting with large flow chamber (no pilot hole to reduce clogging)
• Wetted Parts: Stainless steel for corrosion resistance
• Diaphragm / Seats: Viton diaphragms and seat washers
• Spray Line Port: 1/2″
• Inlet / Bypass Port: 3/4″
• Current Draw: 2.0 amps
• Serviceability: Encapsulated solenoid coil can be changed without removing the valve from the system
• Flow Behavior: Continuous flow through bypass; spray line controlled by valve on/off action

Ideal For

• Sprayer systems needing dependable 12V on/off section control
• Applications where avoiding clogs is important (large chamber, no pilot hole)
• Chemical use cases benefiting from stainless wetted parts and Viton components
• Users who want easier maintenance via a replaceable coil without disassembly
• Setups requiring continuous bypass flow with controlled delivery to the spray line
