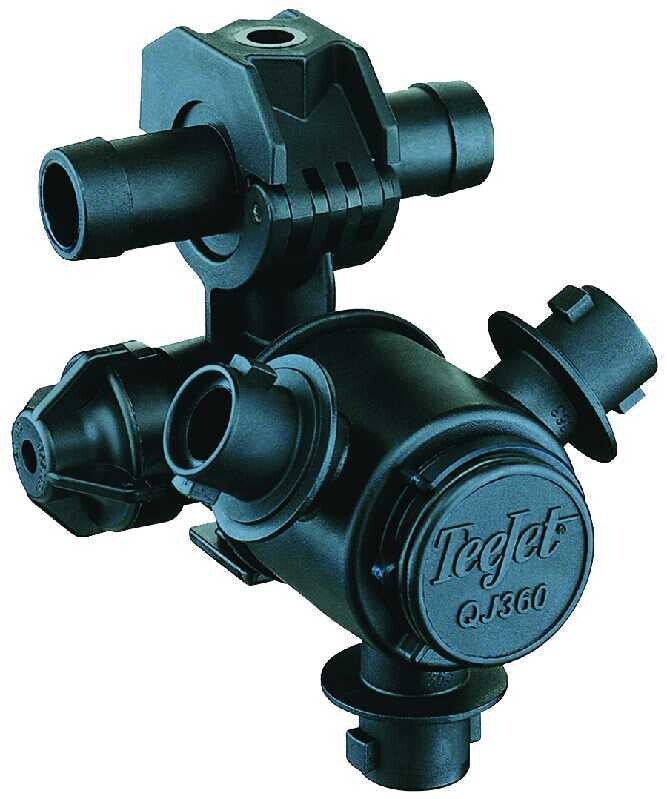

TeeJet Triple Nozzle Body, 1/2" Double Barb

TeeJet Triple Nozzle Body, 1/2" Double Barb

The QJ3635002NYB TeeJet Triple Nozzle Body (QJ360C Series) is a rugged, boom-mounted triple nozzle body designed for fast tip changes, quick boom flushing, and reliable shutoff performance. With 1/2" double barb hose connections and multiple spray positions, it lets you switch spray tips efficiently while maintaining consistent alignment and control. It also includes a ChemSaver® diaphragm check valve for drip-free shutoff, because chemical on the field is fine—chemical on the machine (and your boots) is a different story.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: QJ3635002NYB
• Brand / Series: TeeJet QJ360C Series
• Product Type: Triple nozzle body
• Connection: 1/2" double hose barb
• Spray Positions: Available with 3, 4, or 5 positions (easy tip changes / quick boom flushing)
• Shutoff: Positive shutoff between each spray position
• Spray Alignment: Automatic alignment with flat fan spray tips
• Max Operating Pressure: 300 PSI (20 bar)
• Check Valve Included: ChemSaver® diaphragm check valve for drip-free shutoff
  • Standard opening pressure: 10 PSI (0.7 bar)
  • Diaphragm material: Standard EPDM (Viton® optional)
  • Optional valves: Air ChemSaver or e-ChemSaver® shutoff valves
• Mounting / Protection: Durable design mounts high on boom structure for protection
• Flow Rate (Pressure Drop):
  • 2.25 GPM (8.5 L/min) with 5 PSI (0.34 bar) drop
  • 3.18 GPM (12.0 L/min) with 10 PSI (0.69 bar) drop
• Hardware / Clamp Features:
  • Molded hex socket in upper clamp for attaching to flat surfaces
  • Accepts 5/16" or M8 bolt
  • Hinged upper clamp reduces assembly time and fits inside common boom channels

Ideal For

• Sprayer booms needing a triple nozzle body for quick tip switching
• Operators who want fast boom flushing without extra gymnastics
• Applications requiring drip-free shutoff using a ChemSaver® check valve
• Boom setups using 1/2" double barb hose shanks
• Anyone who likes their spray system precise, consistent, and not “mysteriously still dripping”
