TeeJet Triple Nozzle Body, 3/4" Single Barb

TeeJet Triple Nozzle Body, 3/4" Single Barb

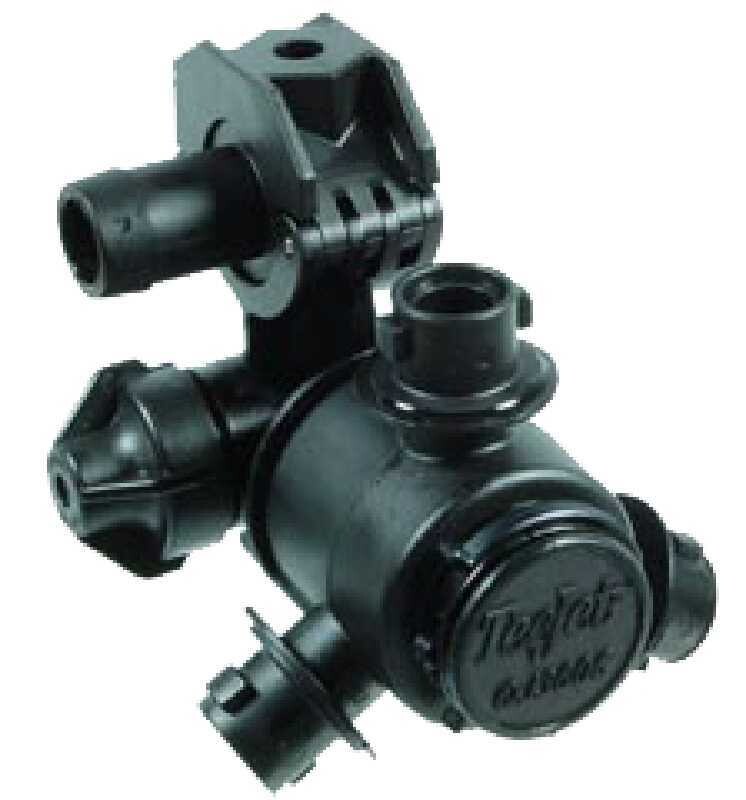

The QJ3637501NYB TeeJet Triple Nozzle Body (QJ360C Series) is a durable, multi-position nozzle body with a 3/4" single barb hose shank, designed for fast spray tip changes and quick boom flushing. With positive shutoff between positions and a ChemSaver® diaphragm check valve for drip-free shutoff, it helps keep applications consistent—because the only thing that should be “dripping” is your sarcasm when a clogged tip shows up.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: QJ3637501NYB
• Brand / Series: TeeJet QJ360C Series
• Product Type: Triple nozzle body
• Connection: 3/4" single barb hose shank
• Spray Positions: Available in 3, 4, or 5 positions (for tip changes / boom flushing)
• Shutoff: Positive shutoff between each spray position
• Alignment: Automatic spray alignment using flat fan spray tips
• Max Operating Pressure: 300 PSI (20 bar)
• Check Valve: Includes ChemSaver® diaphragm check valve for drip-free shutoff
• Diaphragm Opening Pressure: 10 PSI (0.7 bar) standard
• Diaphragm Material: EPDM standard (Viton® optional)
• Valve Options: Optional Air ChemSaver or e-ChemSaver® shutoff valves available
• Flow Rate / Pressure Drop:
  • 2.25 GPM (8.5 L/min) @ 5 PSI (0.34 bar) pressure drop
  • 3.18 GPM (12.0 L/min) @ 10 PSI (0.69 bar) pressure drop
• Mounting / Protection: Designed to mount high on boom structure for protection
• Hardware Interface: Molded hex socket accepts 5/16" or M8 bolt
• Clamp Design: Hinged upper clamp for faster assembly; fits inside common boom channels

Ideal For

• Boom sprayers needing a 3/4" single barb multi-position nozzle body
• Operators who want quick tip changes and easy boom flushing
• Applications where drip-free shutoff and consistent spray alignment matter
• Spray systems running up to 300 PSI that need a rugged, boom-protected nozzle body setup
