Timken Tapered Bearing Cone, 1.375"X1.052"

Timken Tapered Bearing Cone

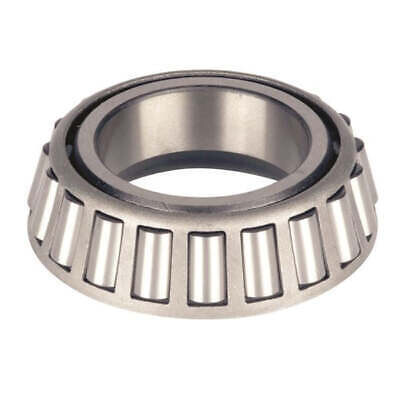

The 14136A Tapered Bearing Cone (Timken interchangeable / FAG brand) is a single-row tapered roller bearing cone designed for combined radial and thrust loads in inch-series applications. Built from chrome steel with a steel cage, it offers strong load capacity and dependable performance across a wide temperature range, making it a solid choice for hubs, spindles, and other tapered bearing assemblies that require precise fit and durability.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: 14136A
• Brand: Timken
• Product Type: Tapered roller bearing cone
• Series: 14000
• System of Measurement: Inch
• Construction: Single row
• Seal Type: Open
• Load Direction: Combined
• Bore Diameter: 1.375"
• Bore Dia Tolerance: +0.005" to 0
• Cone Width: 1.052"
• Cone Width Tolerance: +0.003" to -0.01
• Cone Backface to Clear Radius: 0.03"
• Cone Frontface Backing Diameter: 1.57"
• Cone Backface Backing Diameter: 1.59"
• Cage Cone Frontface Clearance: 0.07"
• Cage Cone Backface Clearance: 0.31"
• Effective Center Location: -0.45"
• Ring Material: Chrome steel
• Cage Material: Steel
• Dynamic Radial Load: 12,300 lbf
• Static Radial Load: 13,900 lbf
• Dynamic Radial Rating (C90, 90M rev): 3,180 lbf
• Dynamic Thrust Rating (Ca90, 90M rev): 2,080 lbf
• Dynamic Radial Rating (Two Row, 90M rev C90): 5,540 lbf
• Dynamic Radial Rating (Two Row, 1M rev C1): 21,400 lbf
• Temperature Range: -30° to 110°C
• ABEC Rating: ABEC-1
• Radial Clearance: Standard (available in C3/C4/C5)
• Compliance: RoHS compliant, REACH compliant

Ideal For

• Bearing assemblies needing a tapered roller cone for combined radial and thrust loads
• Replacing a cone where Timken 14136A interchange is specified
• Equipment operating across a wide temperature range (-30° to 110°C)
• Applications where an open bearing is appropriate and external sealing is provided
• Maintenance and rebuild work requiring inch-dimension precision tolerances
