Timken Tapered Bearing Cone, 2.165"X0.906"

Timken Tapered Bearing Cone, 2.165"X0.906"

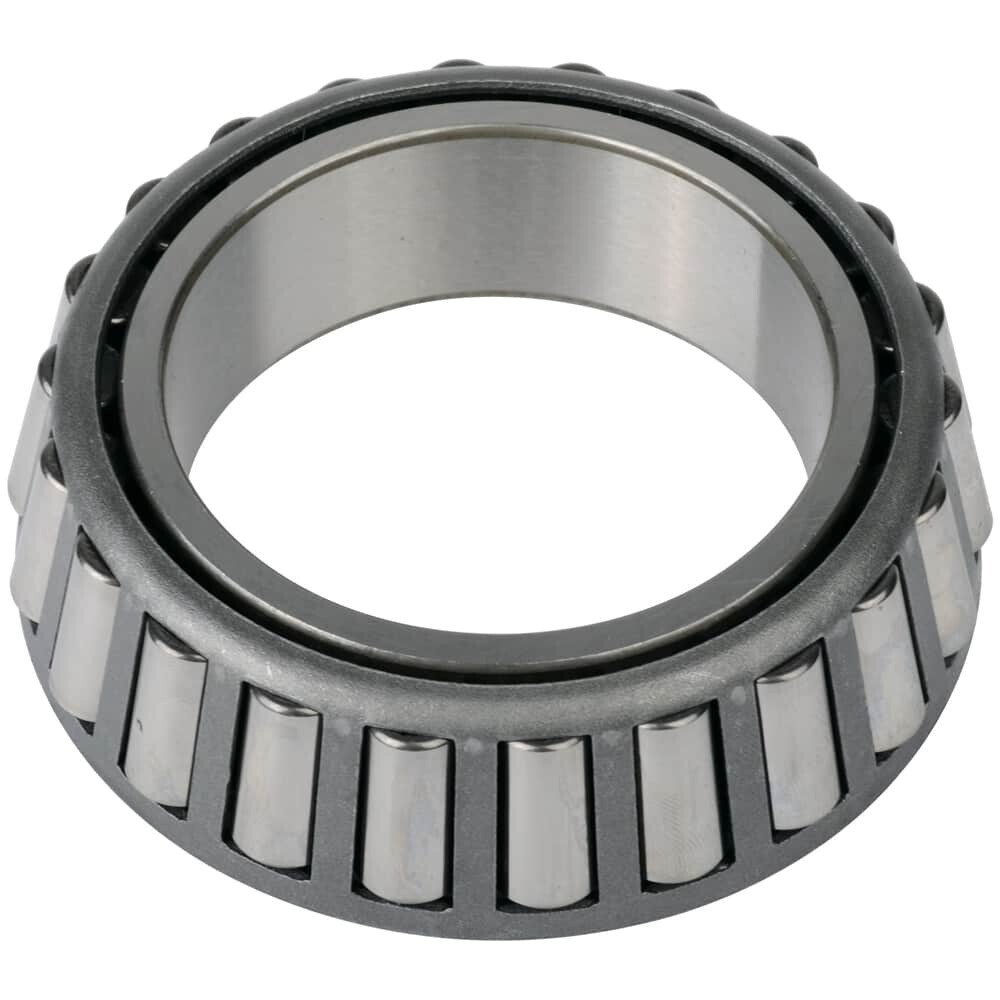

The JLM506849 Timken tapered bearing cone is a single-row tapered roller bearing inner race assembly (cone) designed to support combined radial and thrust loads in demanding equipment. Built in the LM506800 series with an open design and chrome steel ring / steel cage construction, it’s commonly used as the cone component in matched bearing assemblies such as JLM506849/JLM506810 or JLM506849/JLM506811.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: JLM506849
• Brand / Series: Timken LM506800 Series
• Product Type: Tapered roller bearing cone (inner race assembly)
• Bearing Assembly Mates With: JLM506810 or JLM506811
• Construction: Single row
• Seal Type: Open
• Bore Diameter: 55 mm (2.165 in)
• Bore Diameter Tolerance: -0.015 mm to 0
• Cone Width: 23 mm (0.906 in)
• Cone Width Tolerance: -0.15 mm to 0
• Cone Frontface Backing Diameter: 62 mm
• Cone Backface Backing Diameter: 65 mm
• Cone Backface to Clear Radius: 1.52 mm
• Cage Cone Frontface Clearance: 2 mm
• Cage Cone Backface Clearance: 0.5 mm
• Ring Material: Chrome steel
• Cage Material: Steel
• Dynamic Radial Load: 24,525 lbf
• Static Radial Load: 27,675 lbf
• Dynamic Thrust Rating (Ca90): 4,365 lbf
• Temperature Range: -30°C to 110°C
• ABEC Rating: ABEC-1
• Radial Clearance: Standard (also available in C3/C4/C5)
• Compliance: RoHS compliant, REACH compliant

Ideal For

• Equipment needing a Timken JLM506849 cone in the LM506800 series
• Applications with combined radial and thrust loading
• Repairs where matching the correct mating cup (JLM506810 or JLM506811) is critical
• Systems operating in environments from -30°C to 110°C with standard bearing clearance requirements
