Tractor Half PTO Shaft Assy, #55, 1-3/8-6Spl 80Deg CV

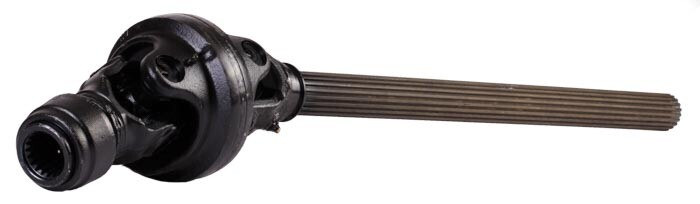

Tractor Half CV PTO Shaft Assy, #55

The 15556800 Tractor Half CV PTO Shaft Assembly (#55) is a heavy-duty, wide-angle driveline engineered for smooth, consistent power delivery in demanding equipment applications. Featuring an 80° constant velocity (CV) joint, this shaft eliminates the vibration and speed fluctuations found in standard PTO shafts, allowing your equipment to run efficiently even at sharp angles. Built with high-strength components and full-coverage shielding, it’s designed for long-lasting performance, safety, and reliability—because a smooth-running PTO makes everything else go a lot better.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 15556800
• Product Type: Tractor half CV PTO shaft assembly (#55 series)
• Shaft Length: 27 inches
• Connection 1: 1-3/8" 6-spline (AUTO-LOK)
• Connection 2: 1-11/16" 20-spline
• CV Joint: 80° wide-angle constant velocity joint
• Horsepower Rating:
  • 117 HP @ 540 RPM
  • 179 HP @ 1000 RPM
• Outside Diameter: 6.5 inches
• Weight: 50 lbs
• Construction: High-quality steel components for strength and durability
• Yokes: Interchangeable with standard and Weasler yokes, featuring cast iron collars and through-bore design
• Cross & Bearing Kits: High torque capacity, long-life design, upgradeable to E-Kits
• Guard System:
  • Easy Lock full-coverage shielding system
  • 360° friction-welded guard bell
  • UV and ozone resistant coating
  • Cold-weather rated to -35°C
• Performance: Constant velocity design maintains smooth, consistent power delivery across wide operating angles

Ideal For

• Implements requiring wide-angle PTO operation such as mowers, balers, and tillage equipment
• Applications needing smooth, vibration-free power transfer
• Operators requiring a durable, high-horsepower driveline solution
• Equipment setups with extreme articulation or movement angles
• Anyone who prefers their PTO shaft to run smooth and steady—without turning the whole setup into a shake test
