TX2500 Tie Rod Cylinder, 2-1/2"X10"

TX2500 Tie Rod Cylinder, 2-1/2"X10"

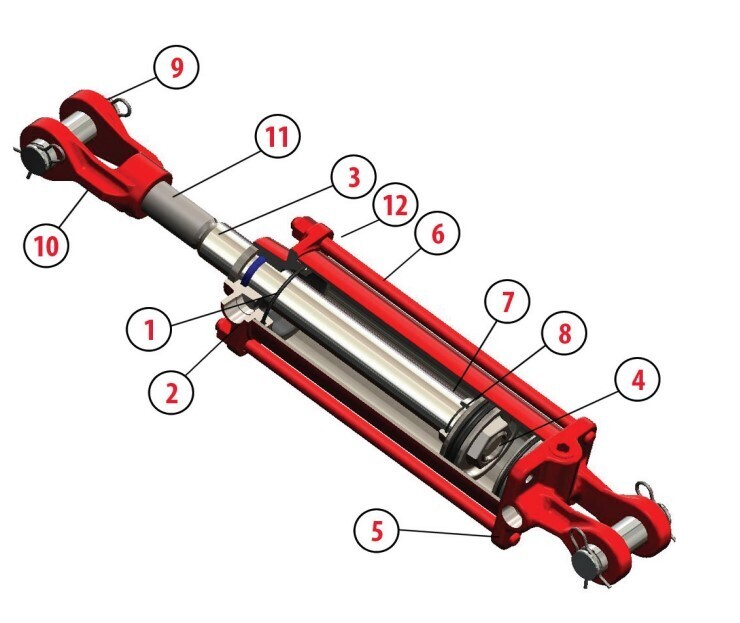

The Lion Hydraulics TX2500 Tie Rod Cylinder (2-1/2" x 10") is a heavy-duty hydraulic cylinder built for reliable full-pressure performance in demanding equipment applications. With a 2.5" bore, 10" stroke, and inline 3/4-16 ORB ports, it’s designed for straightforward plumbing and dependable operation, and it’s finished in red with a strong 30-month warranty. Its published push and pull ratings make sizing simple for repairs or new builds where consistent force output matters.

Country of Origin
Varies by production batch

Key Features / Specifications

• Brand: Lion Hydraulics
• Product Line / Series: TX (TX2500)
• Cylinder Type: Tie Rod Cylinder
• Bore: 2.5"
• Stroke: 10"
• Rod Diameter: 1.125"
• Working Pressure: 2,500 PSI
• Max Rating: Full PSI
• Port Type: 3/4-16 ORB
• Port Orientation: Inline
• Pin Size: 1"
• Pin-to-Pin (Center-to-Center) Retracted: 20.25"
• Pin-to-Pin (Center-to-Center) Extended: 30.25"
• Overall Length (as stated): Retracted 20-1/4", Extended 30-1/4"
• Force Rating: Push 14,725; Pull 9,785
• Color: Red
• Warranty: 30 Month

Ideal For

• Replacing or upgrading tie-rod cylinders in agricultural, industrial, or mobile equipment
• Hydraulic systems operating up to 2,500 PSI requiring full-rated performance
• Applications needing a 2.5" bore with a 10" stroke and inline ORB ports
• Equipment builds where known push/pull force ratings are required for proper sizing
• Shops and maintenance teams wanting a durable cylinder backed by a longer warranty
