TX2500 Tie Rod Cylinder, 2-1/2"X12"

TX2500 Tie Rod Cylinder, 2-1/2"X12"

The Lion Hydraulics TX2500 Tie Rod Cylinder (2-1/2" x 12") is a durable, work-ready hydraulic cylinder built for reliable performance at full-rated pressure. With a 2.5" bore, 12" stroke, and inline 3/4-16 ORB ports, it’s a strong fit for equipment repairs and new builds where consistent push/pull force, leak-free operation, and long service life matter. Finished in black and backed by a 30-month warranty, this TX-series cylinder is designed for demanding applications while maintaining excellent overall value.

Country of Origin
Varies by production batch

Key Features / Specifications

• Brand: Lion Hydraulics
• Product Line: TX (TX2500)
• Cylinder Type: Tie Rod Cylinder
• Bore: 2.5"
• Stroke: 12"
• Rod Diameter: 1.125"
• Working Pressure: 2,500 PSI
• Max Rating: Full PSI
• Port Type: 3/4-16 ORB
• Port Orientation: Inline
• Pin Size: 1"
• Pin-to-Pin (Center-to-Center) Retracted: 22.25"
• Pin-to-Pin (Center-to-Center) Extended: 34.25"
• Overall Length (provided): Retracted 22-1/4", Extended 34-1/4"
• Force (provided): Push 14,725; Pull 9,785
• Color: Black or Red

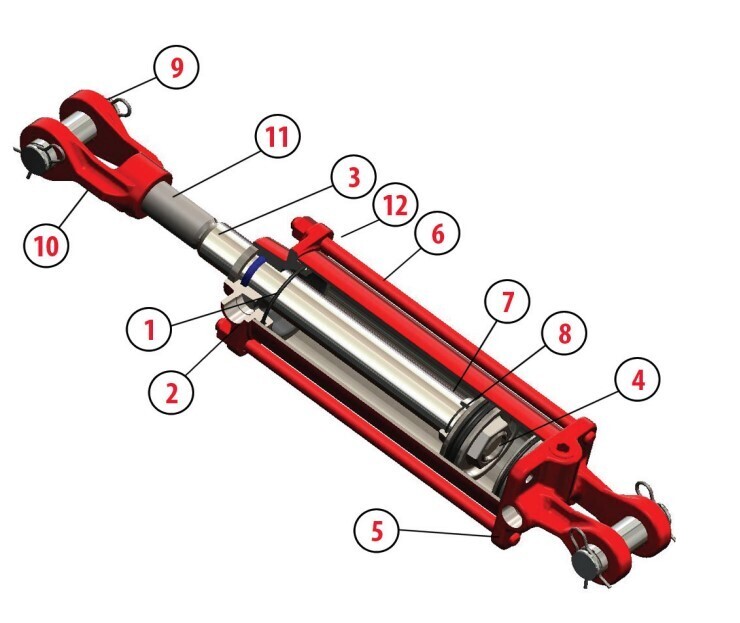

• Typical Construction (estimated): Heavy-wall steel tube and chrome-plated rod for wear resistance and long seal life (common TX-series design features)

Ideal For

• Replacing worn or leaking tie-rod cylinders on agricultural, industrial, or mobile equipment
• Hydraulic systems operating up to 2,500 PSI requiring full-rated performance
• Applications needing a
