TX2500 Tie Rod Cylinder, 2-1/2"X16"

Hydraulic Cylinder, 2-1/2 in Cylinder Bore, 16 in Stroke

This Lion TX Tie Rod Hydraulic Cylinder is a rugged, high-performance cylinder built for demanding farm, industrial, and equipment applications where consistent force and long service life matter. With a 2-1/2" bore, 16" stroke, and 2500 PSI working pressure, it delivers strong push/pull capability, while its hard chrome-plated rod, heavy-wall steel tubing, and ductile iron components are engineered to handle shock loads, side loading, and high-cycle operation with dependable sealing and extended wear life.

Country of Origin: Varies by production batch

Key Features / Specifications

• Product line: TX
• Cylinder type: Tie Rod
• Bore: 2.5 in (2-1/2")
• Stroke: 16 in
• Rod diameter: 1.125 in (1-1/8")
• Working pressure: 2500 PSI
• Max rating: Full PSI
• Port type: 3/8" NPT
• Port orientation: Inline
• Pin size: 1 in
• Pin-to-pin (retracted): 26.25 in
• Pin-to-pin (extended): 42.25 in
• Push force: 13,005
• Pull force: 9,785

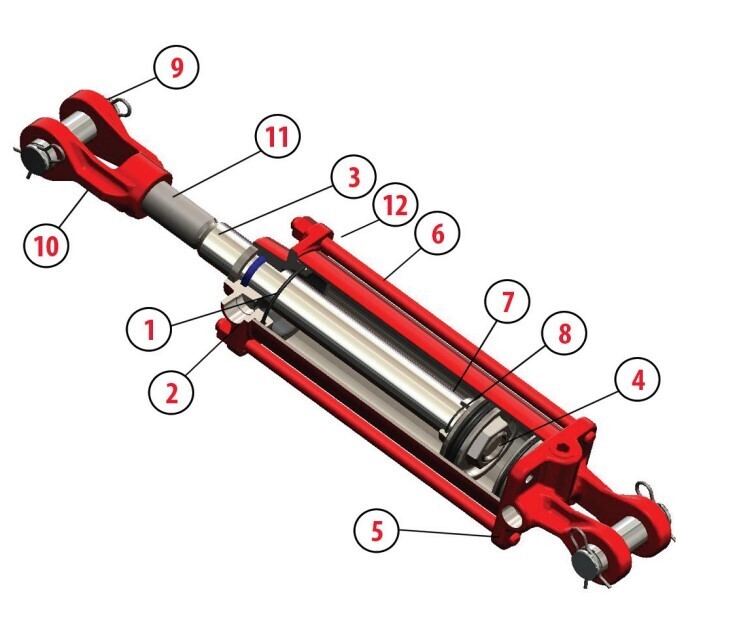

• Construction/material: Steel cylinder with ductile iron caps and piston
• Shaft: High-strength hard chrome-plated rod for extended life and improved sealing
• Tube: Skived and burnished heavy-wall steel tubing for long seal/cylinder life
• Caps: High-grade ductile iron with drilled oil passages and increased bearing surface for shock/side loads
• Tie rods: High-tensile steel for high-pressure durability
• Piston: Precision-machined ductile iron for a forgiving bearing surface and extended life
• Piston nut: Heavy-duty steel, torqued, self-locking for secure retention under high-cycle loads
• Color: Black or Red

Ideal For

• Farm equipment hydraulic repairs and replacements
• Implements, loaders, and attachments requiring a 16" stroke cylinder
• Applications with shock loading or moderate side loads
• Equipment operating up to 2500 PSI
• Users needing a durable tie-rod cylinder with long seal life and strong force output
