TX2500 Tie Rod Cylinder, 2-1/2"X24"

TX2500 Tie Rod Cylinder, 2-1/2"X24"

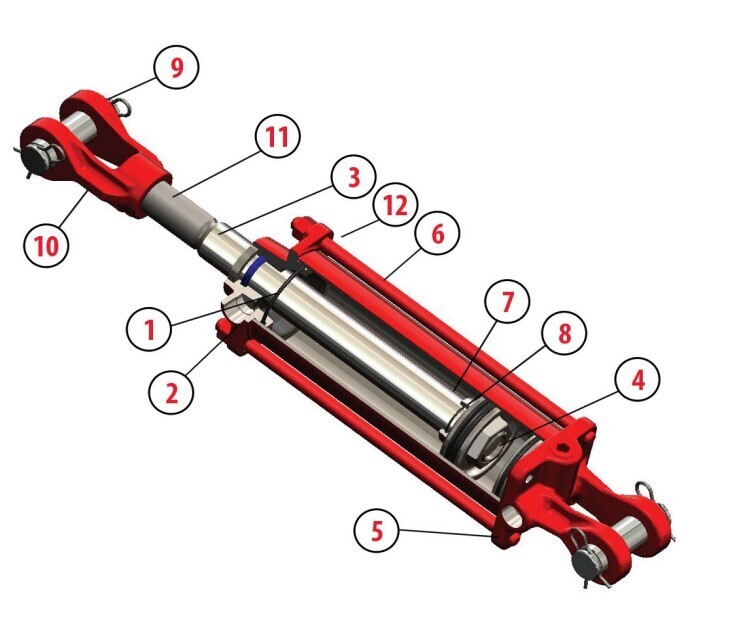

The Lion TX2500 Tie Rod Cylinder (2-1/2" x 24") is a heavy-duty hydraulic cylinder rated for 2,500 PSI, built with a durable tie-rod construction and sized for reliable performance in agricultural, industrial, and equipment applications. With a 34-1/4" retracted and 58-1/4" extended pin-to-pin length, plus 3/8" NPT inline ports, it’s a solid choice for consistent push/pull power and straightforward installation.

Country of Origin: Varies by production batch

Key Features / Specifications

• Brand: Lion
• Product Line: TX
• Model: TX2500
• Cylinder Type: Tie Rod
• Bore: 2.5 in.
• Stroke: 24 in.
• Rod Diameter: 1.25 in.
• Working Pressure: 2,500 PSI
• Port Type: 3/8" NPT
• Port Orientation: Inline
• Pin Size: 1 in.
• Pin-to-Pin (Retracted): 34.25 in.
• Pin-to-Pin (Extended): 58.25 in.
• Push Force: 10,430
• Pull Force: 9,200
• Max Rating: *2,125 (as provided)

Ideal For

• Hydraulic equipment repairs and replacements needing a 2.5" bore / 24" stroke cylinder
• Farm and industrial implements requiring 2,500 PSI working capability
• Applications needing inline 3/8" NPT ports and standard 1" pin mounts
• Jobs where strong push/pull performance is required over a 24" stroke
