TX2500 Tie Rod Cylinder, 2-1/2"X8"

TX2500 Tie Rod Cylinder, 2-1/2"X8"

The TX2500 Tie Rod Hydraulic Cylinder (2-1/2″ Bore × 8″ Stroke) is a heavy-duty steel cylinder built for reliable performance in demanding hydraulic applications, delivering up to 2500 PSI with a durable hard chrome-plated rod for long life and strong sealing. With a 20-1/4″ retracted length and 28-1/4″ extended length, it’s designed to handle shock loads and high-cycle operation using robust ductile iron components, heavy-wall tubing, and high-tensile tie rods.

Country of Origin: Varies by production batch

Key Features / Specifications

• Model: TX2500
• Product Type: Tie rod hydraulic cylinder
• Cylinder Bore: 2-1/2 in
• Stroke: 8 in
• Rod Diameter: 1-1/8 in
• Pressure Rating: 2500 psi
• Ports: 3/8 in NPT
• Material: Steel
• Color: Red
• Length (Retracted): 20-1/4 in
• Length (Extended): 28-1/4 in

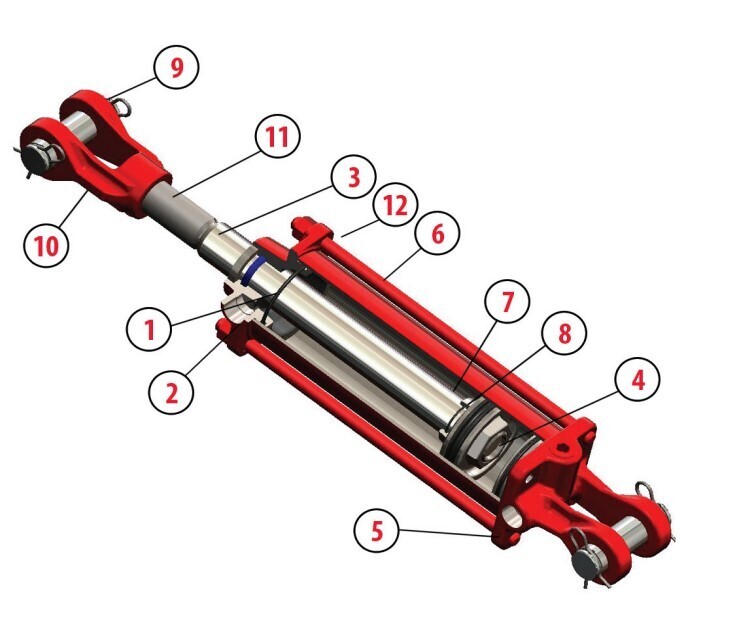

• Rod / Shaft: High-strength, hard chrome-plated for extended life and improved dry sealing
• Tube: Precision-finished skived and burnished heavy-wall steel tubing for extended seal and cylinder life
• End Caps: High-grade ductile iron caps with drilled oil passages and increased bearing surface for shock and side-load applications
• Tie Rods: High-tensile steel tie rods to prevent failure at high pressure and extend service life
• Piston: Precision-machined ductile iron piston for a forgiving bearing surface and extended life
• Piston Nut: Heavy-duty steel, torqued, self-locking nut to hold the piston firm under high-cycle loading

Ideal For

• Hydraulic systems requiring a 2-1/2″ bore × 8″ stroke cylinder
• Equipment exposed to shock loads and side loading
• High-cycle applications needing durability and long seal life
• Repairs or replacements where 2500 PSI-rated performance is required
