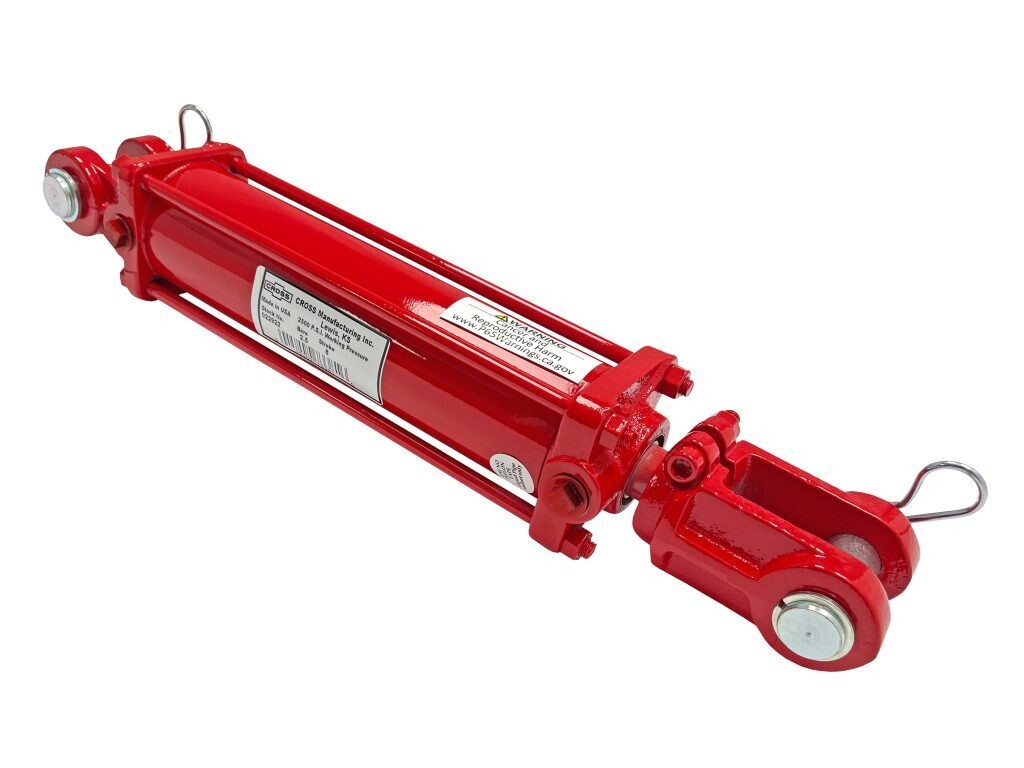

TX2500 Tie Rod Cylinder, 2"X10"

The Lion Hydraulics TX2500 Tie Rod Cylinder, 2" x 10" (20TX10 / Item #58112) is built for dependable hydraulic power with modern sealing and flexible porting for cleaner installs. With leak-free double-ported ORB O-ring ports, heavy-wall tubing, and high-strength tie rods rated to 2,500 PSI, it’s designed for long service life, corrosion resistance, and reliable performance in demanding farm and industrial applications.

Country of Origin: Varies by production batch

Key Features / Specifications

• Brand: Lion Hydraulics
• Series: TX2500
• Model / SKU: 20TX10
• Item #: 58112
• Product Type: Tie rod hydraulic cylinder
• Bore Diameter: 2″
• Stroke Length: 10″
• Shaft Diameter: 1.125″
• Max Pressure: 2,500 PSI
• Closed Pin Center: 20.25″
• Porting: Leak-free double-ported ORB O-ring ports for flexible, configurable porting
• Port Connection: Simple, sealant-free connections
• Port Size: 3/8″ NPT
• Rod Clevis Thread Size: 1-14 UNS-3B
• Cylinder Strength: High-tensile steel construction helps prevent failure at high pressure
• Pins / Retainers: Zinc-plated pins and cotter pin retainers for corrosion and wear demonstrated protection
• Sealing: Premium 2,500 PSI sealing technology for extended service and leak-free performance
• Tube: Precision-finished skived and burnished heavy-wall steel tubing
• Caps: High-grade ductile iron caps with drilled oil passages
• Weight: 14.5 lb (product / ship weight listed)

Ideal For

• Replacing a 2″ bore / 10″ stroke cylinder on farm and industrial equipment
• Applications needing flexible porting and cleaner installs with ORB O-ring ports
• Hydraulic systems running up to 2,500 PSI
• Equipment exposed to corrosion where zinc-plated pins improve longevity
• High-cycle use where heavy-wall tubing and modern sealing reduce leaks
